Anatomy of an MLOps Pipeline - Part 2: Deployment and Infrastructure

8. CI/CD with GitHub Actions: The Philosophy of Automated MLOps

The Philosophical Foundation: Why Automation Isn’t Optional

Before diving into YAML, let’s address the fundamental question: why do we automate ML pipelines?

The naive answer is “to save time.” The real answer is more profound: because human memory is unreliable, manual processes don’t scale, and production systems demand reproducibility.

Consider this scenario: You trained a model 6 months ago. It’s in production. Now there’s a bug. You need to retrain with the exact same configuration. Can you do it?

• Without CI/CD: You search through Slack messages, local notebooks, commented code. You find 3 different sets of hyperparameters. You don’t know which one is the real one. You guess. You’re wrong. The model behaves differently. Production breaks.

• With CI/CD: You look at the GitHub Actions run from 6 months ago. Every parameter, every dependency version, every data hash is there. You trigger the same workflow. The model is identical. Production is stable.

This is not about convenience. This is about engineering rigor.

The Complete Pipeline: From Commit to Production

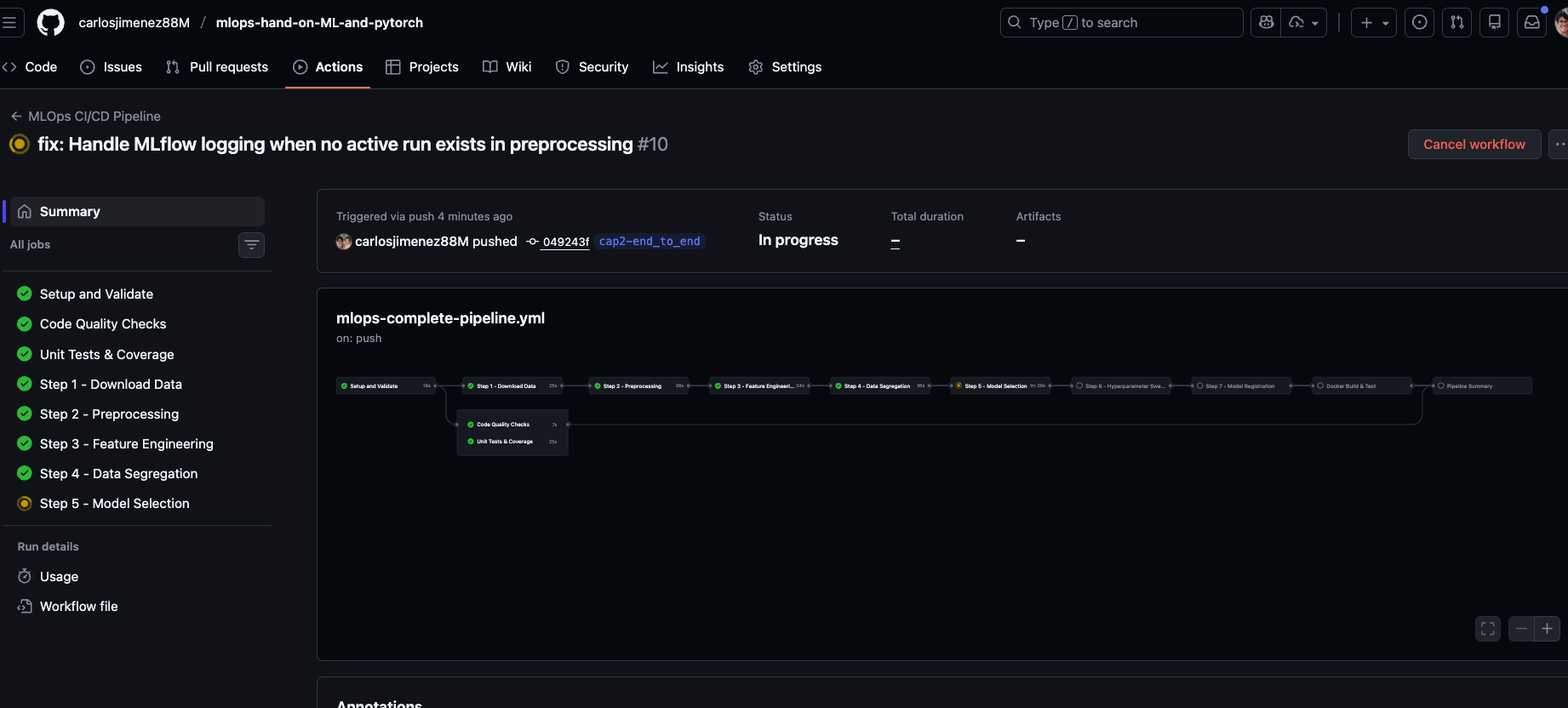

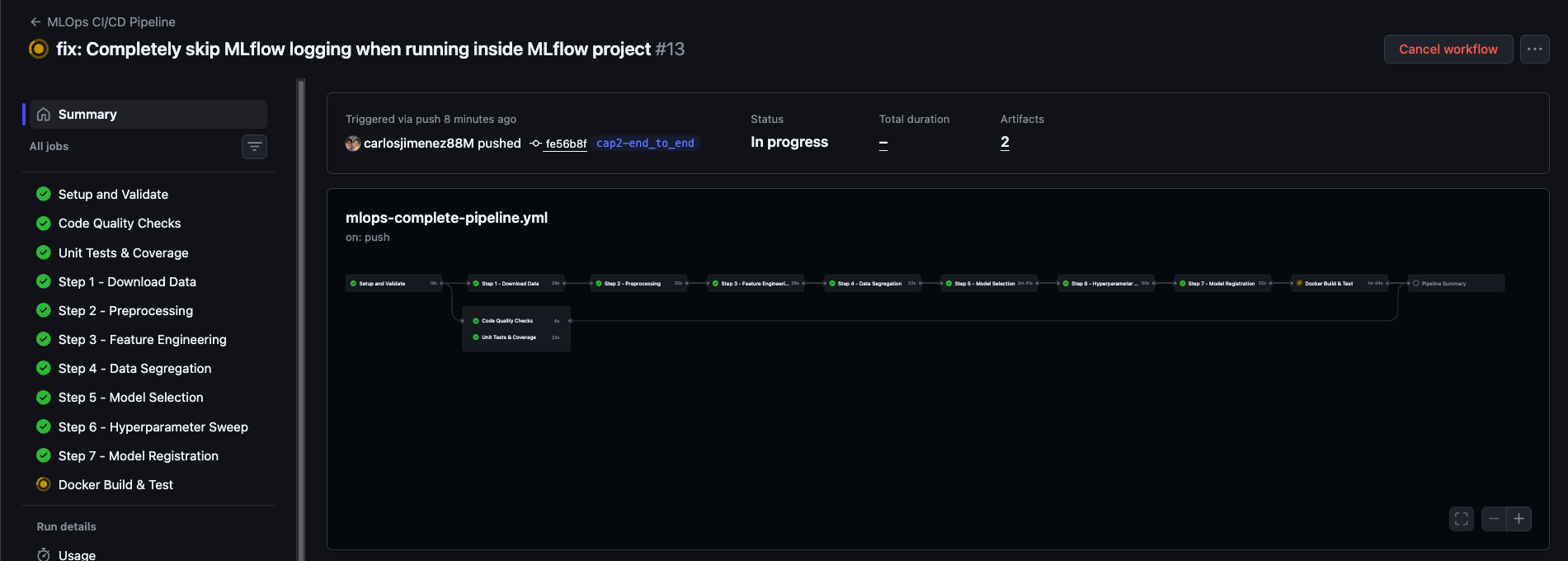

This project implements a single, comprehensive workflow that orchestrates the entire ML lifecycle. Let’s dissect it.

The Architecture: 11 Jobs, 1 Pipeline

Commit to master/main
    ↓
┌─────────────────────────────────────────────┐
│ 01. SETUP & VALIDATION                      │
│     - Validate project structure            │
│     - Install dependencies with uv          │
│     - Cache for speed                       │
└─────────────────────────────────────────────┘
         ↓
    ┌────────────┬────────────┐
    ↓            ↓            ↓
┌────────┐  ┌────────┐  ┌──────────────┐
│  LINT  │  │ TESTS  │  │ STEP 01:     │
│  CODE  │  │ & COV  │  │ DOWNLOAD     │
└────────┘  └────────┘  └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ STEP 02:     │
                        │ PREPROCESS   │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ STEP 03:     │
                        │ FEATURE ENG  │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ STEP 04:     │
                        │ SEGREGATION  │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ STEP 05:     │
                        │ MODEL SELECT │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ STEP 06:     │
                        │ SWEEP        │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ STEP 07:     │
                        │ REGISTRATION │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ DOCKER BUILD │
                        │ & TEST       │
                        └──────────────┘
                             ↓
                        ┌──────────────┐
                        │ SUMMARY      │
                        └──────────────┘

Key insight: The pipeline jobs are sequential where necessary (you can’t train before downloading data) and parallel where possible (linting doesn’t need to wait for tests).

Anatomy of the Workflow

Let’s examine the critical sections of .github/workflows/mlops_pipeline.yaml:

1. Triggers: When Does This Run?

on:
  push:
    branches:
      - master
      - main
      - cap2-end_to_end
  pull_request:
    branches:
      - master
      - main
      - cap2-end_to_end
  workflow_dispatch:
    inputs:
      run_full_pipeline:
        description: 'Run complete 7-step pipeline'
        required: true
        default: true
        type: boolean
      sweep_count:
        description: 'Number of sweep runs'
        required: true
        default: '5'
        type: string

Three trigger modes:

1. Push to master/main: Automatic full pipeline on every merge
2. Pull Request: Validation before merge (runs linting, tests, but may skip expensive steps)
3. Manual (workflow_dispatch): You can trigger manually from GitHub UI with custom parameters

Philosophy: Automation doesn’t mean “always run everything.” It means “make it trivial to run everything when needed.”

2. Environment Variables: Single Source of Truth

env:
  PYTHON_VERSION: "3.12"
  WANDB_PROJECT: "housing-mlops-gcp"
  WANDB_CONSOLE: "wrap"
  WANDB__SERVICE_WAIT: "300"
  WANDB_MODE: "online"
  WANDB_SILENT: "false"
  WORKING_DIR: "cap2-end_to_end"

Why define these globally?

• Python version: Change once, apply everywhere. When Python 3.13 is stable, you update one line.
• W&B config: Consistent logging behavior across all jobs.
• Working directory: If the repo structure changes, one update fixes all jobs.

This is not DRY for the sake of DRY. This is defense against configuration drift.

3. Job 1: Setup & Validation

setup:
  name: Setup and Validate
  runs-on: ubuntu-latest
  outputs:
    python-version: ${{ env.PYTHON_VERSION }}

  steps:
    - name: Checkout repository
      uses: actions/checkout@v4

    - name: Validate project structure
      run: |
        echo "Validating project structure..."
        if [ ! -d "${{ env.WORKING_DIR }}" ]; then
          echo "ERROR: Working directory ${{ env.WORKING_DIR }} not found!"
          exit 1
        fi

        if [ ! -f "${{ env.WORKING_DIR }}/pyproject.toml" ]; then
          echo "ERROR: pyproject.toml not found!"
          exit 1
        fi

        if [ ! -f "${{ env.WORKING_DIR }}/main.py" ]; then
          echo "ERROR: main.py not found!"
          exit 1
        fi

        echo "✓ Project structure validated"

    - name: Set up Python ${{ env.PYTHON_VERSION }}
      uses: actions/setup-python@v5
      with:
        python-version: ${{ env.PYTHON_VERSION }}

    - name: Cache pip dependencies
      uses: actions/cache@v3
      with:
        path: |
          ~/.cache/pip
          ~/.cache/uv
        key: ${{ runner.os }}-pip-${{ hashFiles('**/pyproject.toml') }}
        restore-keys: |
          ${{ runner.os }}-pip-

    - name: Install uv package manager
      run: |
        curl -LsSf https://astral.sh/uv/install.sh | sh
        echo "$HOME/.cargo/bin" >> $GITHUB_PATH

    - name: Install project dependencies
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        export PATH="$HOME/.cargo/bin:$PATH"
        echo "Installing dependencies..."
        uv pip install --system -e .
        echo "✓ Dependencies installed successfully"

What’s happening here:

1. Validation first: Before installing anything, verify the repo structure is correct. Fail fast.
2. Dependency caching: ~/.cache/pip is cached based on pyproject.toml hash. If dependencies haven’t changed, installation is ~10x faster.
3. uv package manager: Traditional pip is slow. uv is a Rust-based alternative that’s 10-100x faster for large dependency trees.

When to use uv vs pip:

• Use uv: Projects with 50+ dependencies, CI/CD environments, when speed matters
• Use pip: Simple projects, maximum compatibility, when you don’t control the environment

4. Parallel Validation: Linting & Tests

lint-and-format:
  name: Code Quality Checks
  needs: setup
  runs-on: ubuntu-latest

  steps:
    - name: Run Ruff linter
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        echo "Running Ruff linter..."
        ruff check src/ --output-format=github || true
        echo "✓ Linting completed"

unit-tests:
  name: Unit Tests & Coverage
  needs: setup
  runs-on: ubuntu-latest
  if: always()  # Run even if linting fails

  steps:
    - name: Run tests with coverage
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        export PATH="$HOME/.cargo/bin:$PATH"
        uv run pytest tests/ -v --cov=src --cov-report=xml --cov-report=term-missing || true
        echo "✓ Tests completed"

    - name: Upload coverage
      if: always()
      uses: codecov/codecov-action@v4
      with:
        files: ./${{ env.WORKING_DIR }}/coverage.xml
        flags: unittests
        fail_ci_if_error: false

Key patterns:

• needs: setup: These jobs wait for setup to finish, but run in parallel with each other.
• if: always(): Tests run even if linting fails. You want to see all failures, not just the first one.
• || true: Linting and tests don’t fail the pipeline (notice the || true). Why? Because in some orgs, code quality is aspirational, not blocking. Adjust based on your team’s culture.

Philosophical note: Should bad tests block deployment? Yes, in mature teams. No, in research-heavy teams where velocity matters more than rigor. This workflow is configured for research. In production, remove the || true.

5. The ML Pipeline: Steps 01-07

Each ML step is a separate job. Let’s examine Step 06 (Hyperparameter Sweep) as representative:

step-06-sweep:
  name: Step 6 - Hyperparameter Sweep
  needs: step-05-model-selection
  runs-on: ubuntu-latest
  if: always() && needs.step-05-model-selection.result == 'success'

  steps:
    - name: Checkout code
      uses: actions/checkout@v4

    - name: Authenticate to Google Cloud
      uses: google-github-actions/auth@v2
      with:
        credentials_json: ${{ secrets.GCP_SA_KEY }}

    - name: Configure environment
      run: |
        echo "GCS_BUCKET_NAME=${{ secrets.GCS_BUCKET_NAME }}" >> $GITHUB_ENV
        echo "GCP_PROJECT_ID=${{ secrets.GCP_PROJECT_ID }}" >> $GITHUB_ENV
        echo "WANDB_API_KEY=${{ secrets.WANDB_API_KEY }}" >> $GITHUB_ENV
        echo "WANDB_PROJECT=${{ env.WANDB_PROJECT }}" >> $GITHUB_ENV

    - name: Run Step 06 - Hyperparameter Sweep
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        python main.py main.execute_steps='["06_sweep"]' sweep.sweep_count=${{ github.event.inputs.sweep_count || '5' }}

    - name: Verify best_params.yaml generated
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        if [ -f "src/model/06_sweep/best_params.yaml" ]; then
          echo "✓ best_params.yaml generated successfully"
          cat src/model/06_sweep/best_params.yaml
        else
          echo "ERROR: best_params.yaml not found!"
          exit 1
        fi

    - name: Upload sweep results
      if: always()
      uses: actions/upload-artifact@v4
      with:
        name: step-06-sweep-results
        path: |
          ${{ env.WORKING_DIR }}/src/model/06_sweep/best_params.yaml
          ${{ env.WORKING_DIR }}/mlruns/
        retention-days: 30

Critical patterns:

1. Conditional execution: if: always() && needs.step-05-model-selection.result == 'success'

   • Translation: Run this job even if earlier jobs failed (always()), but ONLY if step-05 succeeded.
   • Why: If model selection failed, there’s no point in running hyperparameter sweep. But if linting failed, we still want to see ML results.

2. Secret management: ${{ secrets.GCP_SA_KEY }}

   • Secrets are configured in GitHub Settings → Secrets and variables → Actions
   • They’re encrypted at rest and only exposed during job execution
   • Never log secrets. GitHub masks them automatically in logs, but be careful with cat or echo.

3. Dynamic parameters: sweep.sweep_count=${{ github.event.inputs.sweep_count || '5' }}

   • If triggered manually, use the user-provided sweep_count
   • If triggered by push, default to 5
   • This lets you run quick validation sweeps (sweep_count=3) vs production sweeps (sweep_count=50)

4. Artifact verification: The job explicitly checks that best_params.yaml was created

   • Why: Fail loudly if the step silently failed to produce output
   • Silent failures are the worst kind of failure

5. Artifact upload: actions/upload-artifact@v4

   • Artifacts are stored by GitHub for 30 days (configurable)
   • Subsequent jobs can download them with actions/download-artifact@v4
   • Use case: Step 07 (registration) downloads best_params.yaml from Step 06

6. Step 07: Model Registration with Artifact Dependency

step-07-registration:
  name: Step 7 - Model Registration
  needs: step-06-sweep
  runs-on: ubuntu-latest

  steps:
    - name: Download sweep results
      uses: actions/download-artifact@v4
      with:
        name: step-06-sweep-results
        path: ${{ env.WORKING_DIR }}

    - name: Verify best_params.yaml exists
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        if [ -f "src/model/06_sweep/best_params.yaml" ]; then
          echo "✓ best_params.yaml found"
          cat src/model/06_sweep/best_params.yaml
        else
          echo "ERROR: best_params.yaml not found after download!"
          ls -R src/model/06_sweep/
          exit 1
        fi

    - name: Run Step 07 - Model Registration
      working-directory: ${{ env.WORKING_DIR }}
      run: |
        python main.py main.execute_steps='["07_registration"]'

    - name: Upload registered model artifacts
      if: always()
      uses: actions/upload-artifact@v4
      with:
        name: step-07-registered-model
        path: |
          ${{ env.WORKING_DIR }}/models/trained/
          ${{ env.WORKING_DIR }}/configs/model_config.yaml
          ${{ env.WORKING_DIR }}/mlruns/
        retention-days: 90  # Models kept longer than intermediate artifacts

Key insight: Artifacts enable stateful pipelines in stateless environments.

GitHub Actions runners are ephemeral—each job gets a fresh VM. But ML pipelines have dependencies: you can’t register a model without hyperparameters from the sweep.

Artifact flow:

1. Step 06 uploads best_params.yaml
2. GitHub stores it temporarily
3. Step 07 downloads it
4. Step 07 uses it to train the final model
5. Step 07 uploads the trained model (retention: 90 days, because models are more important than intermediate data)

7. Docker Build & Test

docker-test:
  name: Docker Build & Test
  needs: step-07-registration
  runs-on: ubuntu-latest

  steps:
    - name: Download model artifacts
      uses: actions/download-artifact@v4
      with:
        name: step-07-registered-model
        path: ${{ env.WORKING_DIR }}

    - name: Set up Docker Buildx
      uses: docker/setup-buildx-action@v3

    - name: Build API Docker image
      uses: docker/build-push-action@v5
      with:
        context: ./${{ env.WORKING_DIR }}/api
        push: false  # Don't push to registry, just build and test
        tags: housing-mlops-api:test
        cache-from: type=gha  # Use GitHub Actions cache
        cache-to: type=gha,mode=max

    - name: Test Docker image
      run: |
        docker run -d --name test-api -p 8000:8000 housing-mlops-api:test
        sleep 10
        curl -f http://localhost:8000/health || exit 1
        echo "✓ Docker image works correctly"
        docker stop test-api

Why test Docker in CI?

Scenario: You add a new Python dependency. You update pyproject.toml. You test locally. It works. You push to prod. The Docker build fails because you forgot to rebuild the requirements.txt that Docker uses.

With Docker testing in CI: This fails before it reaches production.

Buildx caching: Docker layer caching (via GitHub Actions cache) speeds up builds by ~5-10x. Only changed layers are rebuilt.

8. Pipeline Summary

pipeline-summary:
  name: Pipeline Summary
  runs-on: ubuntu-latest
  needs:
    - setup
    - lint-and-format
    - unit-tests
    - step-01-download
    - step-02-preprocessing
    - step-03-feature-engineering
    - step-04-segregation
    - step-05-model-selection
    - step-06-sweep
    - step-07-registration
    - docker-test
  if: always()

  steps:
    - name: Generate summary
      run: |
        echo "## MLOps Pipeline Execution Summary" >> $GITHUB_STEP_SUMMARY
        echo "" >> $GITHUB_STEP_SUMMARY
        echo "**Branch:** ${{ github.ref_name }}" >> $GITHUB_STEP_SUMMARY
        echo "**Commit:** ${{ github.sha }}" >> $GITHUB_STEP_SUMMARY
        echo "" >> $GITHUB_STEP_SUMMARY
        echo "### Pipeline Steps Status" >> $GITHUB_STEP_SUMMARY
        echo "| Step | Status |" >> $GITHUB_STEP_SUMMARY
        echo "|------|--------|" >> $GITHUB_STEP_SUMMARY
        echo "| Setup & Validation | ${{ needs.setup.result }} |" >> $GITHUB_STEP_SUMMARY
        echo "| Code Quality | ${{ needs.lint-and-format.result }} |" >> $GITHUB_STEP_SUMMARY
        echo "| 01 - Download Data | ${{ needs.step-01-download.result }} |" >> $GITHUB_STEP_SUMMARY
        # ... etc

    - name: Check overall status
      run: |
        if [ "${{ needs.step-07-registration.result }}" == "success" ] && \
           [ "${{ needs.docker-test.result }}" == "success" ]; then
          echo "Pipeline completed successfully!"
          exit 0
        else
          echo "Pipeline failed or incomplete"
          exit 1
        fi

Value: This generates a markdown summary visible in the GitHub Actions UI. One glance tells you:

• Which steps succeeded/failed
• Links to W&B dashboard
• Links to MLflow UI
• Commit SHA (for reproducibility)

This is the “control tower” view of your pipeline.

Version Management: When to Update GitHub Actions

You’ve probably noticed version tags like @v4, @v5, @v2. Let’s address this philosophically.

The Actions We Use

The Philosophy of Version Pinning

Two schools of thought:

1. “Always use latest” (@main or no version tag)

   • Pro: Automatic security patches, new features
   • Con: Breaking changes can silently break your pipeline at 3 AM

2. “Pin to major version” (@v4, @v5)

   • Pro: Stability, predictable behavior
   • Con: You manually update, which means you might miss security patches

This pipeline uses pinned major versions. Why?

Because ML pipelines should break loudly during development, not silently in production.

When to Update Versions

Update immediately:

1. Security vulnerability announced (GitHub Dependabot alerts you)
2. Action is deprecated (GitHub shows warnings in Actions UI)
3. Bug affecting your workflow (check action’s GitHub Issues)

Update proactively (quarterly):

1. Read release notes for major actions (checkout, setup-python, auth)
2. Test in a dev branch
3. If stable, update in main

Never update blindly:

• actions/checkout@v4 → @v5: Read breaking changes first
• google-github-actions/auth@v2 → @v3: Authentication changes can break cloud access

Example update process:

# Create update branch
git checkout -b chore/update-actions

# Edit .github/workflows/mlops_pipeline.yaml
# Change: actions/checkout@v4 → actions/checkout@v5

# Push and test
git push origin chore/update-actions
# Watch GitHub Actions run
# If green, merge. If red, investigate.

Specific Version Recommendations

actions/setup-python@v5:

• Use @v5 (current stable as of 2024-2025)
• Update when Python 3.13+ requires it
• Avoid @v4 (deprecated)

google-github-actions/auth@v2:

• Use @v2 (supports Workload Identity Federation)
• Critical for security: avoids long-lived service account keys
• Update when GCP releases new auth methods

docker/build-push-action@v5:

• Use @v5 (supports new cache modes)
• Update when you need new BuildKit features
• The cache-from: type=gha requires @v5

actions/cache@v3 vs @v4:

• Use @v3 (more stable)
• @v4 exists but has edge cases with cache corruption
• Update when @v4 is widely adopted (check GitHub’s own workflows)

What CI/CD Solves in MLOps

Without CI/CD:

• Manual deployment prone to errors (“Did I use the right Python version?”)
• “Works on my machine” syndrome
• Inconsistent testing (someone skips pytest to save time)
• Rollback requires panic debugging at 2 AM
• No history of what was deployed when
• Each team member has their own deployment ritual

With CI/CD:

• One command: git push
• Tests run automatically (no one can skip them)
• Rollback is git revert + git push
• Complete audit trail in GitHub Actions UI
• Every deployment is reproducible (same code + same workflow = same result)
• New team members deploy on day 1 without specialized knowledge

The Real Value: Time Machine for ML Models

Here’s the ultimate test of an MLOps system:

Scenario: A model deployed 8 months ago is behaving strangely. You need to debug it.

Question: Can you recreate the exact model?

With this CI/CD pipeline:

1. Go to GitHub Actions → Workflows → MLOps CI/CD Pipeline
2. Find the run from 8 months ago (search by commit SHA or date)
3. Click on it
4. See:
   • Exact Python version (3.12)
   • Exact dependency versions (from pyproject.toml in that commit)
   • Exact hyperparameters (from best_params.yaml artifact)
   • Exact data hash (logged to W&B)
   • Exact W&B sweep ID (f73ao31m in the logs)
5. Download the artifacts
6. Trigger the workflow with workflow_dispatch
7. Compare the new run to the old run

This is time-travel debugging. You can reproduce any model from any point in history.

Without this setup: You search through Slack, local files, old notebooks. You guess. You’re wrong. You give up.

Final Philosophy: Automate Everything You’ll Regret Doing Manually

A good rule of thumb:

If a task:

1. Must be done more than twice, AND
2. Has more than 3 steps, AND
3. Failures are costly (wrong model in prod, broken deployment)

→ Automate it.

This workflow automates:

• Data download
• Preprocessing
• Feature engineering
• Model selection
• Hyperparameter tuning
• Model registration
• Docker packaging
• Deployment verification

What it doesn’t automate (intentionally):

• Deployment to production (requires manual approval in most orgs)
• Data labeling (still requires human judgment)
• Model interpretability analysis (exploratory, not deterministic)

The line between automated and manual is not arbitrary—it’s where deterministic processes end and human judgment begins.

9. The Value of MLOps: Why This Matters

The Central Question

“Why should I invest time in all this when I can train a model in a notebook in 30 minutes?”

This is the question every MLOps engineer has heard. The short answer: because notebooks don’t scale.

The long answer is what this section covers.

The Real Problem: Research Code vs Production Code

Research Code (Notebook)

# notebook.ipynb

# Cell 1
import pandas as pd
df = pd.read_csv('housing.csv')

# Cell 2
df = df.dropna()

# Cell 3
from sklearn.ensemble import RandomForestRegressor
model = RandomForestRegressor(n_estimators=100)
model.fit(X_train, y_train)

# Cell 4
import pickle
pickle.dump(model, open('model.pkl', 'wb'))

# Cell 5
# Wait, did I drop the right columns?
# Let me rerun cell 2... oh no, I ran it twice
# Now I have 0 rows, what happened?

Problems:

• Not reproducible (execution order matters)
• Not testable
• Not versionable (git diffs are unreadable)
• Not scalable (what happens with 100GB of data?)
• Not auditable (what params did you use?)

Production Code (This Pipeline)

# src/model/05_model_selection/main.py

@hydra.main(config_path=".", config_name="config")
def train(config: DictConfig) -> None:
    """Train model with versioned configuration."""

    # Load data from GCS (single source of truth)
    df = load_from_gcs(config.gcs_train_path)

    # Apply serialized preprocessing pipeline
    pipeline = joblib.load('artifacts/preprocessing_pipeline.pkl')
    X = pipeline.transform(df)

    # Train with config params
    model = RandomForestRegressor(**config.hyperparameters)
    model.fit(X, y)

    # Log to MLflow
    mlflow.log_params(config.hyperparameters)
    mlflow.log_metrics(evaluate(model, X_test, y_test))
    mlflow.sklearn.log_model(model, "model")

    return model

Benefits:

• Reproducible (same config = same output)
• Testable (pure functions, mocking)
• Versionable (readable git diff)
• Scalable (runs locally or on cluster)
• Auditable (MLflow tracking)

Value #1: Code Modularization

Why It Matters

Scenario: Your model has a bug in preprocessing. In a notebook, preprocessing is mixed with feature engineering, training, and evaluation in 300 lines.

In this pipeline:

# Bug is in preprocessing → only edit src/data/02_preprocessing/
# Tests fail → pytest tests/test_preprocessor.py
# Fix → re-run only steps 02-07, not 01

Time saved: Hours per bug.

Separation of Concerns

This pipeline separates:

1. Data steps (01-04): Produce reusable artifacts
2. Model steps (05-07): Consume artifacts, produce models
3. API: Consumes models, produces predictions
4. Frontend: Consumes API, produces UX

Benefit: Teams can work in parallel. The data scientist modifies feature engineering without touching the API. The frontend engineer modifies UI without understanding Random Forests.

Value #2: Working with Artifacts

The Problem: “Where is model_final_v3.pkl?”

Without artifact management:

models/
├── model_v1.pkl
├── model_v2.pkl
├── model_final.pkl
├── model_final_FINAL.pkl
├── model_final_REAL.pkl
├── model_production_2024_01_15.pkl  # Is this the production one?
└── model_old_backup.pkl  # Can I delete this?

Problems:

• You don’t know what hyperparameters each one uses
• You don’t know what metrics it achieved
• You don’t know what data it was trained on
• Rollback = searching for the correct file

The Solution: Artifact Storage + Metadata

1. Google Cloud Storage for data:

gs://bucket-name/
├── data/
│   ├── 01-raw/housing.parquet                    # Immutable
│   ├── 02-processed/housing_processed.parquet    # Versioned by date
│   ├── 03-features/housing_features.parquet
│   └── 04-split/
│       ├── train/train.parquet
│       └── test/test.parquet
├── artifacts/
│   ├── imputer.pkl                               # Preprocessing artifacts
│   ├── preprocessing_pipeline.pkl
│   └── scaler.pkl
└── models/
    └── trained/housing_price_model.pkl           # Latest trained

Benefits:

• Immutability: 01-raw/ never changes, you can always re-run the pipeline
• Versioning: Each run has a timestamp, you can compare versions
• Sharing: The whole team accesses the same data, not “send me the CSV via Slack”

2. MLflow for models:

# Register model
mlflow.sklearn.log_model(model, "model")

# MLflow automatically saves:
# - The model pickle
# - The hyperparameters (n_estimators=200, max_depth=20)
# - The metrics (MAPE=7.8%, R²=0.87)
# - Metadata (date, duration, user)
# - Code (git commit SHA)

# Load model in production
model = mlflow.pyfunc.load_model("models:/housing_price_model/Production")

Benefits:

• Semantic versioning: v1, v2, v3 with stages (Staging/Production)
• Rich metadata: You know exactly what each version is
• Trivial rollback: transition v2 to Production
• Comparison: MLflow UI shows table comparing all versions

3. W&B for experiments:

# Each sweep run logs:
wandb.log({
    "hyperparameters/n_estimators": 200,
    "hyperparameters/max_depth": 20,
    "metrics/mape": 7.8,
    "metrics/r2": 0.87,
    "plots/feature_importances": wandb.Image(fig),
    "dataset/train_size": 16512,
})

# W&B dashboard:
# - Table with 50 sweep runs
# - Filter by MAPE < 8%
# - Parallel coordinates plot showing relationship between hyperparameters and MAPE
# - Compare top 5 runs side-by-side

Benefits:

• Visualization: Interactive plots of how each hyperparameter affects metrics
• Collaboration: Your team sees your experiments in real-time
• Reproducibility: Each run has a permanent link with all context

Value #3: Pipeline Architecture

Why A Pipeline, Not A Script

Single script (run_all.py):

# run_all.py (500 lines)

def main():
    # Download data
    df = download_data()

    # Preprocess
    df = preprocess(df)

    # Feature engineering
    df = add_features(df)

    # Train model
    model = train_model(df)

    # Deploy
    deploy_model(model)

Problems:

• If it fails in train_model(), you re-run EVERYTHING (including slow download)
• You can’t run just feature engineering to experiment
• Changing preprocessing requires retraining everything
• No intermediate checkpoints

Modular pipeline:

# Run everything
make run-pipeline

# Run only preprocessing
make run-preprocessing

# Run from feature engineering onwards
python main.py main.execute_steps=[03_feature_engineering,04_segregation,05_model_selection]

# Debugging: run only the step that failed
python src/data/03_feature_engineering/main.py --debug

Benefits:

• Selective execution: Only re-run what changed
• Fast debugging: Test a step in isolation
• Parallelization: Independent steps can run in parallel
• Checkpointing: If step 05 fails, steps 01-04 are already done

The Contract Between Steps

Each step:

• Input: Path to artifact in GCS (example: data/02-processed/housing_processed.parquet)
• Output: Path to new artifact in GCS (example: data/03-features/housing_features.parquet)
• Side effects: Logs to MLflow/W&B

# Step 03: Feature Engineering
def run(config):
    # Input
    df = load_from_gcs(config.gcs_input_path)

    # Transform
    df_transformed = apply_feature_engineering(df)

    # Output
    save_to_gcs(df_transformed, config.gcs_output_path)

    # Side effects
    mlflow.log_artifact("preprocessing_pipeline.pkl")
    wandb.log({"optimization/optimal_k": 8})

This contract allows each step to be:

• Tested independently
• Developed by different people
• Replaced without affecting other steps

Value #4: Production-Ready vs Research Code

Production-Ready Checklist

The Real Cost of Not Doing MLOps

Scenario: A model in production has a bug that causes incorrect predictions.

Without MLOps (Research Code):

1. Detect the bug: User reports → 2 hours
2. Reproduce the bug: Search for what code/data was used → 4 hours
3. Fix: Run notebook locally → 1 hour
4. Deploy: SSH, copy pickle, restart server → 30 min
5. Verify: Run manual tests → 1 hour
6. Total: 8.5 hours of downtime

With MLOps (This Pipeline):

1. Detect the bug: Automatic monitoring alerts → 5 min
2. Rollback: transition v3 to Archived + transition v2 to Production → 2 min
3. Fix: Identify issue with MLflow metadata, fix code → 1 hour
4. Deploy: Push to GitHub → Automatic CI/CD → 10 min
5. Verify: Automatic smoke tests pass → 1 min
6. Total: 1 hour 18 min of downtime (>85% reduction)

Annual savings: If this happens 4 times a year, you save 29 hours of engineer time.

Value #5: Data-Driven Decisions

The Anti-Pattern

“I used Random Forest with n_estimators=100 because that’s what everyone does.”

Problem: You have no evidence it’s the best choice.

This Pipeline

Every decision has quantifiable metrics:

1. Imputation:

• Compared 4 strategies (Simple median, Simple mean, KNN, IterativeImputer)
• IterativeImputer won with RMSE=0.52 (vs 0.78 for median)
• Comparison plot in W&B: wandb.ai/project/run/imputation_comparison

2. Feature Engineering:

• Optimized K from 5 to 15
• K=8 maximized silhouette score (0.64)
• Elbow method plot in W&B

3. Hyperparameter Tuning:

• Bayesian sweep of 50 runs
• Optimal config: n_estimators=200, max_depth=20
• MAPE improved from 8.5% to 7.8%
• Link to sweep: wandb.ai/project/sweeps/abc123

Benefit: Six months later, when the stakeholder asks “why do we use this model?”, you open W&B/MLflow and the answer is there with plots and metrics.

The ROI of MLOps

Initial investment:

• Setup of GCS, MLflow, W&B, CI/CD: 2-3 days
• Refactoring code to modular pipeline: 1-2 weeks

Return:

• Deployment time: 8 hours → 10 minutes (48x faster)
• Debugging time: 4 hours → 30 min (8x faster)
• Onboarding new engineers: 1 week → 1 day
• Team confidence: “Hope it works” → “I know it works”

For a team of 5 people, breakeven is ~1 month.

The Final Lesson For MLOps Engineers

It’s not about the tools. You can replace:

• GCS → S3 → Azure Blob
• MLflow → Neptune → Comet
• W&B → TensorBoard → MLflow
• GitHub Actions → GitLab CI → Jenkins

It’s about the principles:

1. Modularization: Code in testable modules, not monolithic notebooks
2. Artifact Management: Versioned data and models, not model_final_v3.pkl
3. Automation: CI/CD eliminates toil
4. Observability: Logs, metrics, tracking
5. Reproducibility: Same input → same output
6. Data-driven decisions: Every choice backed by metrics

When you understand this, you’re an MLOps engineer. When you implement it, you’re a good MLOps engineer.

9.5. W&B vs MLflow: Why Both, Not One or the Other

The Uncomfortable Question

“Why do you have Weights & Biases AND MLflow? Aren’t they the same?”

This question reveals a fundamental misunderstanding about what each tool does. They’re not competitors—they’re allies with different responsibilities. Understanding this separates a data scientist who experiments from an MLOps engineer who builds systems.

The short answer: W&B is your research lab. MLflow is your production line.

The long answer is what this section covers, with examples from this project’s actual code.

The Real Problem: Experimentation vs Governance

Phase 1: Experimentation (50-100 runs/day)

When you’re in experimentation phase:

• You run 50 sweep runs testing hyperparameter combinations
• You need to see in real-time how each run evolves
• You want to visually compare 20 runs simultaneously
• You need to see convergence plots, feature distributions, confusion matrices
• Logging overhead must be minimal (asynchronous logging)

Correct tool: Weights & Biases

Phase 2: Governance and Deployment (1-2 models/week)

When you promote a model to production:

• You need semantic versioning (v1, v2, v3)
• You need stages (Staging → Production)
• You need rich metadata (what hyperparameters? what data? what commit?)
• You need an API to load models (models:/housing_price_model/Production)
• You need trivial rollback (transition v2 to Production)

Correct tool: MLflow Model Registry

The uncomfortable truth: No tool does both things well.

How This Project Uses W&B

1. Hyperparameter Sweep (Step 06): Bayesian Optimization

# src/model/06_sweep/main.py

# Sweep configuration (Bayesian optimization)
sweep_config = {
    "method": "bayes",  # Bayesian > Grid > Random
    "metric": {
        "name": "wmape",
        "goal": "minimize"
    },
    "early_terminate": {
        "type": "hyperband",
        "min_iter": 3
    },
    "parameters": {
        "n_estimators": {"min": 50, "max": 300},
        "max_depth": {"min": 5, "max": 30},
        "min_samples_split": {"min": 2, "max": 20},
        "min_samples_leaf": {"min": 1, "max": 10}
    }
}

# Initialize sweep
sweep_id = wandb.sweep(sweep=sweep_config, project="housing-mlops-gcp")

# Training function that W&B calls 50 times
def train():
    run = wandb.init()  # W&B automatically assigns hyperparameters

    # Get hyperparameters suggested by Bayesian optimizer
    config = wandb.config

    # Train model
    model = RandomForestRegressor(
        n_estimators=config.n_estimators,
        max_depth=config.max_depth,
        # ...
    )
    model.fit(X_train, y_train)

    # Evaluate
    metrics = evaluate_model(model, X_test, y_test)

    # Log to W&B (asynchronous, non-blocking)
    wandb.log({
        "hyperparameters/n_estimators": config.n_estimators,
        "hyperparameters/max_depth": config.max_depth,
        "metrics/mape": metrics['mape'],
        "metrics/wmape": metrics['wmape'],  # Optimizer uses this
        "metrics/r2": metrics['r2'],
        "plots/feature_importances": wandb.Image(fig),
    })

    run.finish()

# Run 50 runs with Bayesian optimization
wandb.agent(sweep_id, function=train, count=50)

What W&B does here that MLflow can’t:

1. Bayesian Optimization: W&B suggests the next hyperparameters based on previous runs. It’s not random—it uses Gaussian Processes to efficiently explore the space.

   Run 1: n_estimators=100, max_depth=15 → wMAPE=8.5%
   Run 2: n_estimators=200, max_depth=20 → wMAPE=7.9%  # Better
   Run 3: n_estimators=250, max_depth=22 → wMAPE=7.8%  # W&B suggests values close to Run 2


2. Early Termination (Hyperband): If a run is performing badly in the first 3 iterations (epochs), W&B kills it automatically and tries other hyperparameters. Saves ~40% of compute.

   "early_terminate": {
       "type": "hyperband",
       "min_iter": 3  # Minimum 3 iterations before terminating
   }


3. Parallel Coordinates Plot: Interactive visualization showing which hyperparameter combination produces the best wMAPE.



   Interpretation: Blue lines (runs with low wMAPE) converge at n_estimators=200-250 and max_depth=20-25. This visually tells you where the optimum is.

4. Asynchronous Logging: wandb.log() doesn’t block. While the model trains, W&B uploads metrics in the background. Total overhead: <1% of training time.

MLflow doesn’t have:

• Bayesian optimization (only Grid/Random search via scikit-learn)
• Intelligent early termination
• Parallel coordinates plots
• Asynchronous logging (mlflow.log is synchronous)

2. Real-Time Monitoring: See Runs While They Run

# In W&B dashboard (web UI):
# - See 50 simultaneous runs in interactive table
# - Filter by "wmape < 8.0%" → shows only 12 runs
# - Compare top 5 runs side-by-side
# - See convergence plots (MAPE vs iteration)

Real use case: You start a 50-run sweep at 9 AM. At 10 AM, from your laptop at the coffee shop:

1. Open W&B dashboard
2. See that 30 runs have finished
3. Filter by wmape < 8.0% → 8 runs qualify
4. Compare those 8 runs → identify that max_depth=20 appears in all
5. Decision: Cancel the sweep, adjust max_depth range to [18, 25], restart

Value: Immediate feedback without SSH to the server, without reading terminal logs. Experimentation is interactive, not batch.

3. Lightweight Artifact Tracking (References to GCS)

# src/model/05_model_selection/main.py

# Upload model to GCS
model_gcs_uri = upload_model_to_gcs(model, "models/05-selection/randomforest_best.pkl")
# gs://bucket/models/05-selection/randomforest_best.pkl

# Log reference in W&B (does NOT upload the pickle, only the URI)
artifact = wandb.Artifact(
    name="best_model_selection",
    type="model",
    description="Best model selected: RandomForest"
)
artifact.add_reference(model_gcs_uri, name="best_model.pkl")  # Only the URI
run.log_artifact(artifact)

W&B doesn’t store the model—it only saves the URI gs://.... The model lives in GCS.

Advantage: You don’t pay for double storage (GCS + W&B). W&B is the index, GCS is the warehouse.

How This Project Uses MLflow

1. Model Registry (Step 07): Versioning and Stages

# src/model/07_registration/main.py

with mlflow.start_run(run_name="model_registration"):
    # Log model
    mlflow.sklearn.log_model(model, "model")

    # Log params and metrics
    mlflow.log_params({
        "n_estimators": 200,
        "max_depth": 20,
        "min_samples_split": 2
    })
    mlflow.log_metrics({
        "mape": 7.82,
        "r2": 0.8654
    })

    # Register in Model Registry
    client = MlflowClient()

    # Create registered model (if it doesn't exist)
    client.create_registered_model(
        name="housing_price_model",
        description="Housing price prediction - Random Forest"
    )

    # Create new version
    model_version = client.create_model_version(
        name="housing_price_model",
        source=f"runs:/{run_id}/model",
        run_id=run_id
    )
    # Result: housing_price_model/v3

    # Transition to stage
    client.transition_model_version_stage(
        name="housing_price_model",
        version=model_version.version,
        stage="Staging"  # Staging → Production when validated
    )

What MLflow does here that W&B can’t:

1. Semantic Versioning: Each model is housing_price_model/v1, v2, v3. They’re not random IDs—they’re incremental versions.

2. Stages: A model goes through None → Staging → Production → Archived. This lifecycle is explicit.

   v1: Production (current in API)
   v2: Staging (being validated)
   v3: None (just trained)
   v4: Archived (deprecated)


3. Model-as-Code API: Loading a model in the API is trivial:

   # api/app/core/model_loader.py

   model = mlflow.pyfunc.load_model("models:/housing_price_model/Production")


   You don’t need to know:

   • Where the pickle is physically located
   • What version it is (MLflow resolves “Production” → v1)
   • How to deserialize it (mlflow.pyfunc abstracts this)

4. Rollback in 10 Seconds:

   # Problem: v3 in Production has a bug
   # Rollback to v2:
   mlflow models transition \
     --name housing_price_model \
     --version 2 \
     --stage Production

   # API detects the change and automatically reloads v2


5. Rich Metadata with Tags and Description:

   # Add searchable tags
   client.set_model_version_tag(
       "housing_price_model",
       version,
       "training_date",
       "2026-01-13"
   )
   client.set_model_version_tag(
       "housing_price_model",
       version,
       "sweep_id",
       "abc123xyz"  # Link to W&B sweep
   )

   # Description in Markdown
   client.update_model_version(
       name="housing_price_model",
       version=version,
       description="""
       # Housing Price Model v3

       **Trained:** 2026-01-13
       **Algorithm:** Random Forest
       **Metrics:** MAPE=7.8%, R²=0.865
       **Sweep:** [W&B Link](https://wandb.ai/project/sweeps/abc123)
       """
   )


   Result: 6 months later, when a stakeholder asks “what model is in Production?”, you open MLflow UI and all the info is there—not in a lost Slack thread.

W&B doesn’t have:

• Model Registry (only basic artifact tracking)
• Stages (Staging/Production)
• Load API (models:/name/stage)
• Transition history (who changed v2 to Production, when, why)

2. Pipeline Orchestration (main.py)

# main.py

@hydra.main(config_path=".", config_name="config")
def go(config: DictConfig) -> None:
    # MLflow orchestrates steps as sub-runs

    # Step 01: Download
    mlflow.run(
        uri="src/data/01_download_data",
        entry_point="main",
        parameters={
            "file_url": config.download_data.file_url,
            "gcs_output_path": config.download_data.gcs_output_path,
            # ...
        }
    )

    # Step 02: Preprocessing
    mlflow.run(
        uri="src/data/02_preprocessing_and_imputation",
        entry_point="main",
        parameters={
            "gcs_input_path": config.preprocessing.gcs_input_path,
            # ...
        }
    )

    # ... Steps 03-07

MLflow creates a hierarchical run:

Parent Run: end_to_end_pipeline
├── Child Run: 01_download_data
│   ├── params: file_url, gcs_output_path
│   └── artifacts: housing.parquet
├── Child Run: 02_preprocessing_and_imputation
│   ├── params: imputation_strategy
│   └── artifacts: imputer.pkl, housing_processed.parquet
├── Child Run: 03_feature_engineering
│   └── ...
└── Child Run: 07_registration
    └── artifacts: model.pkl, model_config.yaml

Value: In MLflow UI, you see the entire pipeline execution as a tree. Each step is auditable—what params it used, how long it took, what artifacts it produced.

W&B doesn’t have pipeline orchestration—only tracking of individual runs.

The Division of Labor in This Project

The Complete Flow: W&B → MLflow

Day 1-3: Experimentation (W&B)

# Run 50-run sweep
make run-sweep

# W&B dashboard shows:
# - 50 runs in table
# - Parallel coordinates plot
# - Best run: n_estimators=200, max_depth=20, wMAPE=7.8%
# - Sweep ID: abc123xyz

Output: src/model/06_sweep/best_params.yaml

hyperparameters:
  n_estimators: 128
  max_depth: 23
  min_samples_split: 9
  min_samples_leaf: 9
  max_features: log2
metrics:
  mape: 20.4002
  wmape: 19.12
  r2: 0.78339
  within_10pct: 36.2
sweep_id: f73ao31m  # Link to W&B
best_run_id: 5q1840qa
best_run_name: dry-sweep-5

Day 4: Registration (MLflow)

# Step 07 reads best_params.yaml
python main.py main.execute_steps=[07_registration]

# MLflow:
# 1. Trains model with best_params
# 2. Registers as housing_price_model/v3
# 3. Transitions to Staging
# 4. Saves metadata (including sweep_id)

Day 5-7: Staging Validation

# API runs with model in Staging
docker run -p 8080:8080 \
  -e MLFLOW_MODEL_NAME=housing_price_model \
  -e MLFLOW_MODEL_STAGE=Staging \
  housing-api:latest

# Run tests, validate metrics, review predictions

Day 8: Promotion to Production

mlflow models transition \
  --name housing_price_model \
  --version 3 \
  --stage Production

# Production API auto-reloads v3
# v2 becomes fallback (stage: Archived)

If something fails:

# Rollback in 10 seconds
mlflow models transition \
  --name housing_price_model \
  --version 2 \
  --stage Production

Why Both, Definitely

Question: “Can I use only W&B?”

Answer: You can, but you lose:

• Model Registry (versioning, stages, rollback)
• Standard API for loading models in production
• Pipeline orchestration with hierarchical runs

Result: You end up building your own model versioning system with custom scripts—reinventing the wheel badly.

Question: “Can I use only MLflow?”

Answer: You can, but you lose:

• Bayesian optimization (you’ll have to do slow Grid Search)
• Interactive visualizations (parallel coordinates, real-time dashboards)
• Intelligent early termination (you waste compute)

Result: Your sweeps take 3x longer, and you have no visual feedback on what works.

The Real Cost

W&B:

• Free tier: 100GB storage, unlimited collaborators
• Team tier: $50/user/month (for teams >5 people)

MLflow:

• Open source, free
• Cost: Hosting the tracking server (Cloud Run: ~$20/month for moderate use)
• Storage: GCS (you already pay for data)

Total for team of 5: ~$20-50/month (if using W&B free tier) or ~$270/month (if using W&B Team).

ROI: If a more efficient sweep saves 30 minutes of compute/day:

• Compute saved: ~15 hours/month
• In GCP: 15 hours × $2/hour (GPU) = $30/month saved in compute alone
• Plus engineer time (more valuable)

Breakeven in <1 month.

The Lesson For MLOps Engineers

Don’t choose tools by hype or popularity. Choose by clear responsibilities:

1. Fast, interactive experimentation: W&B, Neptune, Comet
2. Governance and deployment: MLflow, Seldon, BentoML
3. Artifact storage: GCS, S3, Azure Blob (not tracking tools)

This project uses:

• W&B: Because it needs efficient Bayesian sweep
• MLflow: Because it needs production-ready Model Registry
• GCS: Because it needs high-availability storage

There’s no redundancy—there’s specialization.

When you understand this, you stop asking “W&B or MLflow?” and start asking “what problem am I solving?”

That’s the difference between using tools and building systems.

10. Docker and MLflow: Containerizing the Complete Ecosystem

The Three-Container Architecture

This project uses three distinct Dockerfiles, each optimized for its specific purpose:

1. Pipeline Container (Dockerfile): Runs the complete training pipeline with MLflow tracking

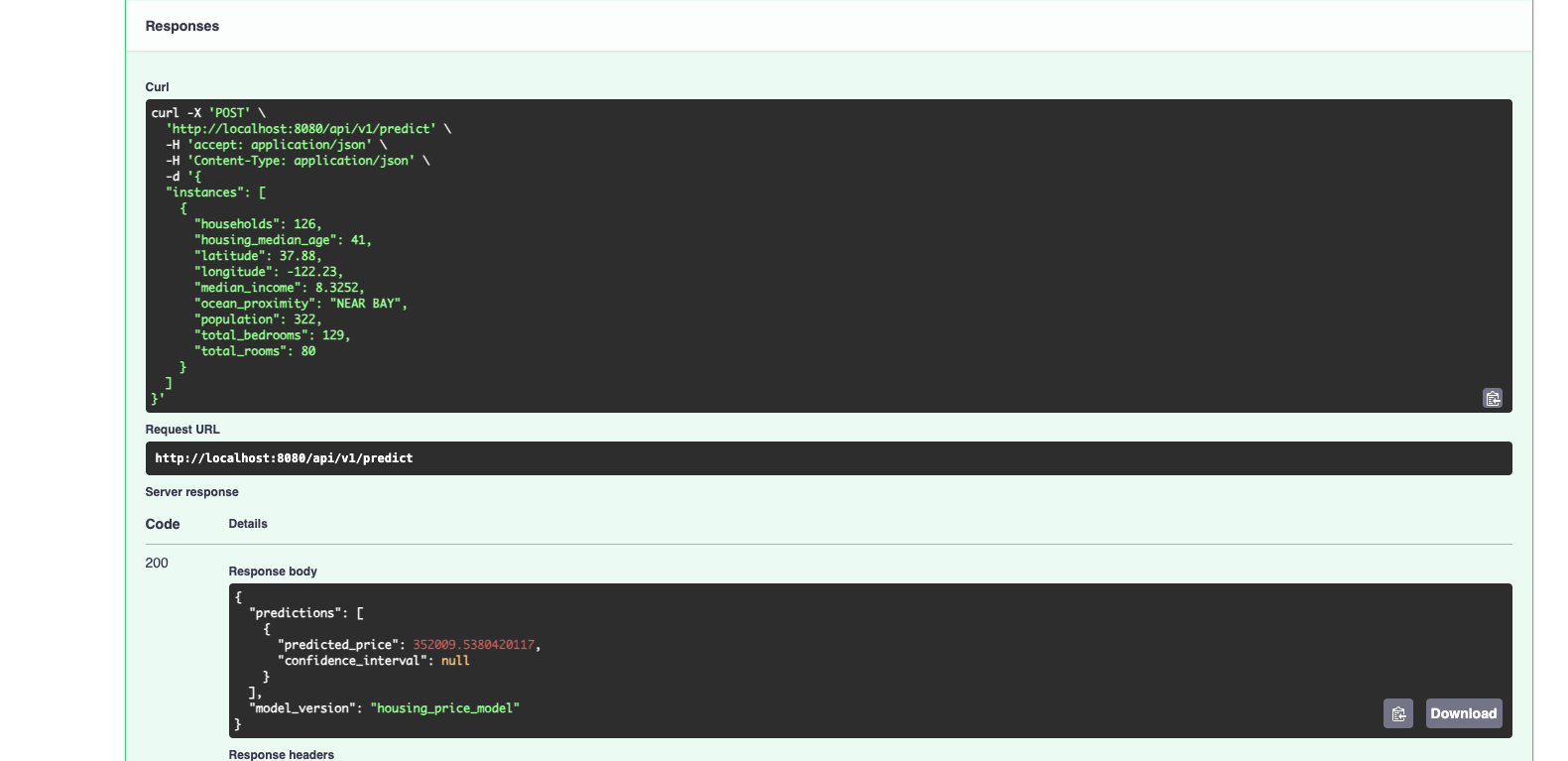

2. API Container (api/Dockerfile): Serves predictions with FastAPI in production

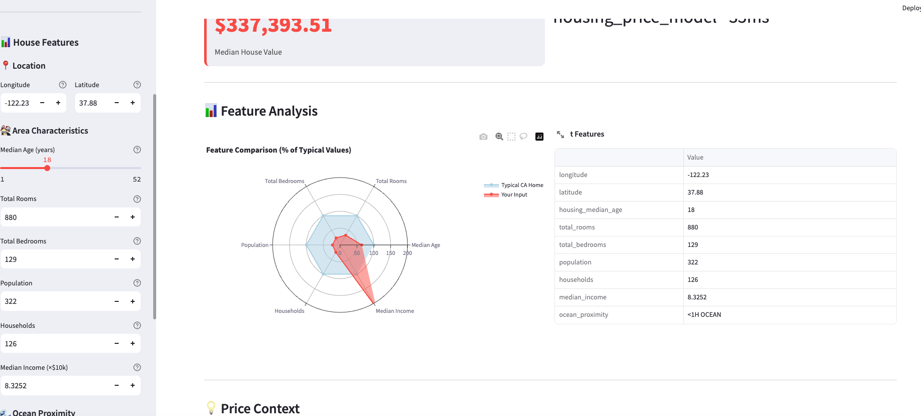

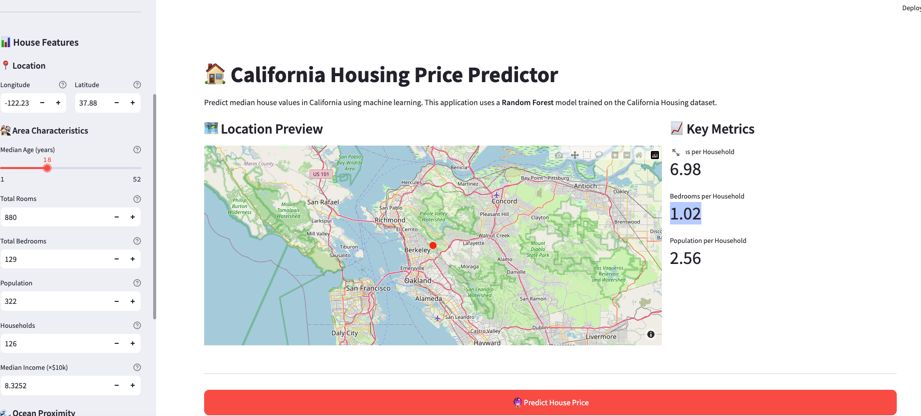

3. Streamlit Container (streamlit_app/Dockerfile): Provides interactive web interface

This separation is not accidental—it’s an architectural decision that reflects the different requirements of each component.

1. Pipeline Container: Training with MLflow Tracking

Pipeline Dockerfile

# =================================================================
# Dockerfile for MLOps Pipeline Execution
# Purpose: Run the complete training pipeline in containerized environment
# =================================================================

FROM python:3.12-slim

LABEL maintainer="danieljimenez88m@gmail.com"
LABEL description="Housing Price Prediction - MLOps Pipeline"

# Set working directory
WORKDIR /app

# Install system dependencies
RUN apt-get update && apt-get install -y \
    gcc \
    g++ \
    git \
    curl \
    && rm -rf /var/lib/apt/lists/*

# Copy requirements first for better caching
COPY pyproject.toml ./
COPY requirements.txt* ./

# Install Python dependencies
RUN pip install --no-cache-dir --upgrade pip && \
    pip install --no-cache-dir uv && \
    uv pip install --system -e .

# Copy application code
COPY . .

# Set environment variables
ENV PYTHONUNBUFFERED=1
ENV PYTHONDONTWRITEBYTECODE=1

# Create necessary directories
RUN mkdir -p mlruns outputs models

# Default command runs the pipeline
CMD ["python", "main.py"]

Critical Technical Decisions

1. Why gcc and g++

RUN apt-get install -y gcc g++ git curl

Many ML packages (numpy, scipy, scikit-learn) compile C/C++ extensions during installation. Without these compilers, pip install fails with cryptic errors like “error: command ‘gcc’ failed”.

Trade-off: Larger image (~500MB vs ~150MB of pure Python slim), but guarantees all dependencies install correctly.

2. Layer Caching Strategy

# Copy requirements first for better caching
COPY pyproject.toml ./
COPY requirements.txt* ./
RUN pip install ...

# Copy application code AFTER
COPY . .

Docker caches layers. If you change Python code but not dependencies, Docker reuses the pip install layer (takes 5 minutes) and only recopies the code (10 seconds).

Without this optimization: Every code change requires reinstalling all dependencies.

3. Directory Creation for MLflow

RUN mkdir -p mlruns outputs models

MLflow writes artifacts to mlruns/ by default if a remote tracking server isn’t configured. If this directory doesn’t exist with correct permissions, MLflow fails silently.

outputs/: For plots and intermediate analysis models/: For model checkpoints before uploading to GCS

How to Enable MLflow Tracking

Option 1: Local MLflow (Default)

When you run the pipeline in this container, MLflow writes to mlruns/ inside the container:

docker run --env-file .env housing-pipeline:latest

# MLflow writes to /app/mlruns/
# To see the UI:
docker exec -it <container-id> mlflow ui --host 0.0.0.0 --port 5000

Limitation: Runs are lost when the container stops.

Option 2: MLflow Remote Tracking Server

To persist runs, configure a separate MLflow server:

# docker-compose.yaml
services:
  mlflow:
    image: ghcr.io/mlflow/mlflow:v2.9.2
    container_name: mlflow-server
    ports:
      - "5000:5000"
    environment:
      - BACKEND_STORE_URI=sqlite:///mlflow.db
      - DEFAULT_ARTIFACT_ROOT=gs://your-bucket/mlflow-artifacts
    volumes:
      - mlflow-data:/mlflow
    command: >
      mlflow server
      --backend-store-uri sqlite:///mlflow/mlflow.db
      --default-artifact-root gs://your-bucket/mlflow-artifacts
      --host 0.0.0.0
      --port 5000

  pipeline:
    build: .
    environment:
      - MLFLOW_TRACKING_URI=http://mlflow:5000
      - GCP_PROJECT_ID=${GCP_PROJECT_ID}
      - GCS_BUCKET_NAME=${GCS_BUCKET_NAME}
      - WANDB_API_KEY=${WANDB_API_KEY}
    depends_on:
      - mlflow

volumes:
  mlflow-data:

Configuration in code:

# main.py
import os
import mlflow

# If MLFLOW_TRACKING_URI is configured, use that server
mlflow_uri = os.getenv("MLFLOW_TRACKING_URI", "file:./mlruns")
mlflow.set_tracking_uri(mlflow_uri)

mlflow.set_experiment("housing_price_prediction")

with mlflow.start_run():
    # Log params, metrics, artifacts
    mlflow.log_param("n_estimators", 200)
    mlflow.log_metric("mape", 7.82)
    mlflow.sklearn.log_model(model, "model")

Option 3: MLflow in Cloud (Production)

For production, use a managed MLflow server:

# Deploy MLflow to Cloud Run (serverless)
gcloud run deploy mlflow-server \
  --image ghcr.io/mlflow/mlflow:v2.9.2 \
  --platform managed \
  --region us-central1 \
  --set-env-vars="BACKEND_STORE_URI=postgresql://user:pass@host/mlflow_db,DEFAULT_ARTIFACT_ROOT=gs://bucket/mlflow" \
  --allow-unauthenticated

# Get URL
MLFLOW_URL=$(gcloud run services describe mlflow-server --format 'value(status.url)')

# Configure in pipeline
export MLFLOW_TRACKING_URI=$MLFLOW_URL

Pipeline Container Execution

# Build
docker build -t housing-pipeline:latest .

# Run with env vars
docker run \
  --env-file .env \
  -v $(pwd)/mlruns:/app/mlruns \
  housing-pipeline:latest

# Run with specific steps
docker run \
  --env-file .env \
  housing-pipeline:latest \
  python main.py main.execute_steps=[03_feature_engineering,05_model_selection]

# See logs in real-time
docker logs -f <container-id>

Volume Mount (-v): Mounts mlruns/ from the host to the container to persist MLflow runs even after the container stops.

2. API Container: Production Inference

API Dockerfile

# =================================================================
# Dockerfile for Housing Price Prediction API
# Purpose: Production-ready FastAPI service for Cloud Run deployment
# =================================================================

FROM python:3.12-slim

LABEL maintainer="danieljimenez88m@gmail.com"
LABEL description="Housing Price Prediction API - FastAPI Service"

WORKDIR /app

# Install system dependencies (only curl for healthcheck)
RUN apt-get update && apt-get install -y \
    curl \
    && rm -rf /var/lib/apt/lists/*

# Copy requirements first for better caching
COPY requirements.txt .

# Install Python dependencies
RUN pip install --no-cache-dir --upgrade pip && \
    pip install --no-cache-dir -r requirements.txt

# Copy application code
COPY app/ ./app/

# Create models directory
RUN mkdir -p models

# Set environment variables
ENV PYTHONUNBUFFERED=1
ENV PYTHONDONTWRITEBYTECODE=1
ENV PORT=8080

# Expose port
EXPOSE 8080

# Health check
HEALTHCHECK --interval=30s --timeout=10s --start-period=40s --retries=3 \
    CMD curl -f http://localhost:8080/health || exit 1

# Run the application
CMD exec uvicorn app.main:app --host 0.0.0.0 --port ${PORT}

Critical Technical Decisions

1. Lighter Image

Compared to the pipeline container:

• Doesn’t need gcc/g++: Dependencies are already compiled in wheels
• Doesn’t need git: Doesn’t clone repos
• Only curl: For the healthcheck

Result: Image of ~200MB vs ~500MB for the pipeline.

Why it matters: Cloud Run charges for memory usage. A smaller image = less memory = less cost.

2. Native Health Check

HEALTHCHECK --interval=30s --timeout=10s --start-period=40s --retries=3 \
    CMD curl -f http://localhost:8080/health || exit 1

Docker marks the container as “unhealthy” if the /health endpoint fails 3 consecutive times.

Cloud Run and Kubernetes use this to:

• Not send traffic to unhealthy containers
• Restart failing containers
• Uptime reporting

start-period=40s: Gives the API 40 seconds to load the model before starting health checks.

3. Flexible Port Configuration

ENV PORT=8080
CMD exec uvicorn app.main:app --host 0.0.0.0 --port ${PORT}

Cloud Run injects PORT as an env var (can be 8080, 8081, etc.). The API must read this value, not hardcode it.

exec: Replaces the shell process with uvicorn, allowing Docker to send signals (SIGTERM) directly to uvicorn for graceful shutdown.

How the API Loads the Model

The API has three model loading strategies with automatic fallback:

# api/app/core/model_loader.py

class ModelLoader:
    """Load model from MLflow → GCS → Local with fallback."""

    def load_model(self) -> Any:
        """Priority: MLflow > GCS > Local"""

        # Strategy 1: From MLflow Registry
        if self.mlflow_model_name:
            try:
                model_uri = f"models:/{self.mlflow_model_name}/{self.mlflow_stage}"
                self._model = mlflow.pyfunc.load_model(model_uri)
                logger.info(f"Loaded from MLflow: {model_uri}")
                return self._model
            except Exception as e:
                logger.warning(f"MLflow load failed: {e}, trying GCS...")

        # Strategy 2: From GCS
        if self.gcs_model_path:
            try:
                storage_client = storage.Client()
                bucket = storage_client.bucket(self.gcs_bucket)
                blob = bucket.blob(self.gcs_model_path)

                model_bytes = blob.download_as_bytes()
                self._model = pickle.loads(model_bytes)
                logger.info(f"Loaded from GCS: gs://{self.gcs_bucket}/{self.gcs_model_path}")
                return self._model
            except Exception as e:
                logger.warning(f"GCS load failed: {e}, trying local...")

        # Strategy 3: From local file (fallback)
        if self.local_model_path and Path(self.local_model_path).exists():
            with open(self.local_model_path, 'rb') as f:
                self._model = pickle.load(f)
            logger.info(f"Loaded from local: {self.local_model_path}")
            return self._model

        raise RuntimeError("No model could be loaded from any source")

Configuration with env vars:

# Production: Load from MLflow
docker run -p 8080:8080 \
  -e MLFLOW_TRACKING_URI=https://mlflow.example.com \
  -e MLFLOW_MODEL_NAME=housing_price_model \
  -e MLFLOW_MODEL_STAGE=Production \
  housing-api:latest

# Staging: Load from GCS
docker run -p 8080:8080 \
  -e GCS_BUCKET=my-bucket \
  -e GCS_MODEL_PATH=models/trained/housing_price_model.pkl \
  housing-api:latest

# Development: Load from local
docker run -p 8080:8080 \
  -v $(pwd)/models:/app/models \
  -e LOCAL_MODEL_PATH=/app/models/trained/housing_price_model.pkl \
  housing-api:latest

3. Streamlit Container: Interactive Frontend

Streamlit Dockerfile

# =================================================================
# Dockerfile for Streamlit Frontend
# Purpose: Interactive web interface for housing price predictions
# =================================================================

FROM python:3.12-slim

LABEL maintainer="danieljimenez88m@gmail.com"
LABEL description="Housing Price Prediction - Streamlit Frontend"

WORKDIR /app

RUN apt-get update && apt-get install -y curl && rm -rf /var/lib/apt/lists/*

COPY requirements.txt .
RUN pip install --no-cache-dir --upgrade pip && \
    pip install --no-cache-dir -r requirements.txt

COPY app.py .

# Create .streamlit directory for config
RUN mkdir -p .streamlit

# Streamlit configuration
RUN echo '\
[server]\n\
port = 8501\n\
address = "0.0.0.0"\n\
headless = true\n\
enableCORS = false\n\
enableXsrfProtection = true\n\
\n\
[browser]\n\
gatherUsageStats = false\n\
\n\
[theme]\n\
primaryColor = "#FF4B4B"\n\
backgroundColor = "#FFFFFF"\n\
secondaryBackgroundColor = "#F0F2F6"\n\
textColor = "#262730"\n\
font = "sans serif"\n\
' > .streamlit/config.toml

ENV PYTHONUNBUFFERED=1
ENV PYTHONDONTWRITEBYTECODE=1

EXPOSE 8501

HEALTHCHECK --interval=30s --timeout=10s --start-period=40s --retries=3 \
    CMD curl -f http://localhost:8501/_stcore/health || exit 1

CMD ["streamlit", "run", "app.py", "--server.port=8501", "--server.address=0.0.0.0"]

Critical Technical Decisions

1. Embedded Configuration

RUN echo '...' > .streamlit/config.toml

Streamlit requires configuration to run in containers (headless mode, CORS, etc.). Instead of committing a config.toml file to the repo, we generate it at build time.

Advantages:

• One less file in the repo
• Configuration versioned with the Dockerfile
• No risk of forgetting to commit the config

2. Streamlit Health Check

HEALTHCHECK CMD curl -f http://localhost:8501/_stcore/health || exit 1

Streamlit automatically exposes /_stcore/health. This endpoint returns 200 if the app is running.

3. Custom Theme

[theme]
primaryColor = "#FF4B4B"
backgroundColor = "#FFFFFF"
secondaryBackgroundColor = "#F0F2F6"
textColor = "#262730"

The theme defines button colors, backgrounds, etc. This gives visual consistency without needing custom CSS in each component.

How Streamlit Connects to the API

# streamlit_app/app.py

import os
import requests
import streamlit as st

# Read API URL from environment variable
API_URL = os.getenv("API_URL", "http://localhost:8080")
API_PREDICT_ENDPOINT = f"{API_URL}/api/v1/predict"

def make_prediction(features: Dict[str, Any]) -> Dict[str, Any]:
    """Call API to get prediction."""
    payload = {"instances": [features]}

    try:
        response = requests.post(
            API_PREDICT_ENDPOINT,
            json=payload,
            timeout=10
        )
        response.raise_for_status()
        return response.json()
    except requests.exceptions.RequestException as e:
        st.error(f"API Error: {e}")
        return None

# Streamlit UI
st.title("Housing Price Prediction")

with st.form("prediction_form"):
    longitude = st.number_input("Longitude", value=-122.23)
    latitude = st.number_input("Latitude", value=37.88)
    # ... more inputs

    submitted = st.form_submit_button("Predict")

    if submitted:
        features = {
            "longitude": longitude,
            "latitude": latitude,
            # ...
        }

        result = make_prediction(features)

        if result:
            prediction = result["predictions"][0]["median_house_value"]
            st.success(f"Predicted Price: ${prediction:,.2f}")

API URL configuration:

# Docker Compose: Use service name
docker-compose up
# Streamlit automatically receives API_URL=http://api:8080

# Local development: Use localhost
API_URL=http://localhost:8080 streamlit run app.py

# Production: Use Cloud Run URL
API_URL=https://housing-api-xyz.run.app streamlit run app.py

Docker Compose: Orchestrating the Three Containers

# docker-compose.yaml
services:
  api:
    build:
      context: ./api
      dockerfile: Dockerfile
    container_name: housing-price-api
    ports:
      - "8080:8080"
    environment:
      - PORT=8080
      - LOCAL_MODEL_PATH=/app/models/trained/housing_price_model.pkl
      - WANDB_API_KEY=${WANDB_API_KEY}
    volumes:
      - ./models:/app/models:ro
    restart: unless-stopped
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:8080/health"]
      interval: 30s
      timeout: 10s
      retries: 3
    networks:
      - mlops-network

  streamlit:
    build:
      context: ./streamlit_app
      dockerfile: Dockerfile
    container_name: housing-streamlit
    ports:
      - "8501:8501"
    environment:
      - API_URL=http://api:8080
    depends_on:
      - api
    restart: unless-stopped
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:8501/_stcore/health"]
      interval: 30s
      timeout: 10s
      retries: 3
    networks:
      - mlops-network

networks:
  mlops-network:
    driver: bridge
    name: housing-mlops-network

Critical Decisions:

1. Network Isolation

networks:
  - mlops-network

Both containers are in the same Docker network, allowing Streamlit to call the API using http://api:8080 (service name as hostname).

Without this: You’d have to use http://host.docker.internal:8080 (only works on Docker Desktop) or the host IP.

2. Read-Only Volume Mount

volumes:
  - ./models:/app/models:ro

The API mounts models/ in read-only mode (:ro). The container can read the model but not modify it.

Why: Security. If the container is compromised, an attacker can’t overwrite the model with a malicious one.

3. Dependency Order

depends_on:
  - api

Docker Compose starts the API before Streamlit. This prevents Streamlit from failing when trying to connect to an API that’s not yet running.

Limitation: depends_on only waits for the container to start, not for the API to be ready (healthcheck pass). For that, you need an init container or retry logic in Streamlit.

Complete Execution Commands

# 1. Build all images
docker-compose build

# 2. Train the model (pipeline container)
docker run --env-file .env -v $(pwd)/models:/app/models housing-pipeline:latest

# 3. Start API + Streamlit
docker-compose up -d

# 4. Verify health
curl http://localhost:8080/health
curl http://localhost:8501/_stcore/health

# 5. See logs
docker-compose logs -f

# 6. Stop everything
docker-compose down

What This Architecture Solves

Without containers:

• “Works on my machine” syndrome
• Conflicting dependencies (Python 3.9 vs 3.12)
• Manual setup in every environment (dev, staging, prod)

With this architecture:

• Reproducibility: Same container runs on laptop, CI/CD, and production
• Isolation: API doesn’t interfere with Streamlit, pipeline doesn’t interfere with API
• Deployment: docker push → gcloud run deploy in <5 minutes
• Rollback: docker pull previous-image → restart
• Observability: Automatic health checks, centralized logs

The real value: A data scientist without DevOps experience can deploy to production without knowing how to configure nginx, systemd, or virtual environments. Docker abstracts all that complexity.

10.5. API Architecture: FastAPI in Production

Why This Section Matters

You’ve seen training pipelines, hyperparameter sweeps, and model registry. But 90% of the time, your model isn’t training—it’s serving predictions in production.

A poorly designed API is the bottleneck between an excellent model and a useful product. This section breaks down how this project builds a production-ready API, not a tutorial prototype.

The General Architecture

api/
├── app/
│   ├── main.py                    # FastAPI app + lifespan management
│   ├── core/
│   │   ├── config.py              # Pydantic Settings (env vars)
│   │   ├── model_loader.py        # Multi-source model loading
│   │   ├── wandb_logger.py        # Prediction logging
│   │   └── preprocessor.py        # Feature engineering
│   ├── routers/
│   │   └── predict.py             # Prediction endpoints
│   └── models/
│       └── schemas.py             # Pydantic request/response models
├── requirements.txt
├── Dockerfile
└── tests/

Architectural decision: Separation of concerns by layers:

1. Core: Business logic (load model, logging, config)
2. Routers: HTTP endpoints (routes, request validation)
3. Models: Data schemas (Pydantic)

Why not everything in main.py? Because when the API grows (adding authentication, rate limiting, multiple models), each layer extends independently without touching the rest.

1. Lifespan Management: The Pattern That Avoids First-Request Latency

The Problem It Solves

Common anti-pattern:

# BAD: Load model on every request
@app.post("/predict")
def predict(features):
    model = pickle.load(open("model.pkl", "rb"))  # 5 seconds every request
    return model.predict(features)

Problems:

• First request takes 5 seconds (load model)
• Every subsequent request also (no caching)
• If 10 concurrent requests → 10 model loads (50 seconds total)

The Solution: asynccontextmanager

# api/app/main.py

@asynccontextmanager
async def lifespan(app: FastAPI):
    """
    Lifecycle manager for the FastAPI application.
    Loads the model on startup and cleans up on shutdown.
    """
    logger.info("Starting up API...")

    # STARTUP: Load model ONCE
    wandb_logger = WandBLogger(
        project=settings.WANDB_PROJECT,
        enabled=True
    )

    model_loader = ModelLoader(
        local_model_path=settings.LOCAL_MODEL_PATH,
        gcs_bucket=settings.GCS_BUCKET,
        gcs_model_path=settings.GCS_MODEL_PATH,
        mlflow_model_name=settings.MLFLOW_MODEL_NAME,
        mlflow_model_stage=settings.MLFLOW_MODEL_STAGE,
        mlflow_tracking_uri=settings.MLFLOW_TRACKING_URI
    )

    try:
        logger.info("Loading model...")
        model_loader.load_model()  # Takes 5 seconds, but ONLY once
        logger.info(f"Model loaded: {model_loader.model_version}")

        # Save in app state (available to all endpoints)
        app.state.model_loader = model_loader
        app.state.wandb_logger = wandb_logger

    except Exception as e:
        logger.error(f"Failed to load model: {str(e)}")
        logger.warning("API will start but predictions will fail")

    yield  # API runs here

    # SHUTDOWN: Cleanup
    logger.info("Shutting down API...")
    wandb_logger.close()


# Use lifespan in FastAPI
app = FastAPI(
    title="Housing Price Prediction API",
    version="1.0.0",
    lifespan=lifespan  # CRITICAL
)

What it does:

1. Startup (before yield):

   • Load model into memory (5 seconds, only once)
   • Initialize W&B logger
   • Save both in app.state (singleton pattern)

2. Running (after yield):

   • All requests use the cached model in app.state.model_loader
   • Latency per request: <50ms (only inference, no I/O)

3. Shutdown (after context manager):

   • Close W&B run (flush pending logs)
   • Free resources

Result:

• First request: <50ms (model already loaded)
• Subsequent requests: <50ms
• 10 concurrent requests: <100ms average (parallelizable)

Trade-off: 5-10 second startup time. Acceptable for production—better than 5 seconds per request.

2. Configuration Management: Pydantic Settings with Priorities

The Pattern: Settings-as-Code

# api/app/core/config.py

from pydantic_settings import BaseSettings

class Settings(BaseSettings):
    PROJECT_NAME: str = "Housing Price Prediction API"
    VERSION: str = "1.0.0"
    API_V1_STR: str = "/api/v1"

    # Model - MLflow (priority 1)
    MLFLOW_MODEL_NAME: str = ""
    MLFLOW_MODEL_STAGE: str = "Production"
    MLFLOW_TRACKING_URI: str = ""

    # Model - GCS (priority 2)
    GCS_BUCKET: str = ""
    GCS_MODEL_PATH: str = "models/trained/housing_price_model.pkl"

    # Model - Local (priority 3, fallback)
    LOCAL_MODEL_PATH: str = "models/trained/housing_price_model.pkl"

    # Weights & Biases
    WANDB_API_KEY: str = ""
    WANDB_PROJECT: str = "housing-mlops-api"

    class Config:
        env_file = ".env"  # Read from .env automatically
        case_sensitive = True  # MLFLOW_MODEL_NAME != mlflow_model_name

Why Pydantic Settings:

1. Type Safety: settings.VERSION is str, not Optional[Any]
2. Validation: If MLFLOW_MODEL_STAGE is not a string, fails at startup (not on first request)
3. Auto .env loading: You don’t need python-dotenv manually
4. Default values: LOCAL_MODEL_PATH has a default, MLFLOW_MODEL_NAME doesn’t

Usage in code:

from app.core.config import Settings

settings = Settings()  # Read env vars + .env

if settings.MLFLOW_MODEL_NAME:  # Type-safe check
    model = load_from_mlflow(settings.MLFLOW_MODEL_NAME)

The Priority Strategy (Cascade Fallback)

Try to load from:
1. MLflow Registry (if MLFLOW_MODEL_NAME is configured)
   ↓ If fails
2. GCS (if GCS_BUCKET is configured)
   ↓ If fails
3. Local filesystem (always available as last resort)
   ↓ If fails
4. API starts but `/predict` returns 500

Configuration by environment:

# Production (.env.production)
MLFLOW_MODEL_NAME=housing_price_model
MLFLOW_MODEL_STAGE=Production
MLFLOW_TRACKING_URI=https://mlflow.company.com
# GCS and Local stay empty → not used

# Staging (.env.staging)
MLFLOW_MODEL_NAME=housing_price_model
MLFLOW_MODEL_STAGE=Staging
# Same setup, different stage

# Local development (.env.local)
LOCAL_MODEL_PATH=models/trained/housing_price_model.pkl
# Without MLflow or GCS → load from local directly

Value: One codebase, multiple environments. No if ENVIRONMENT == "production" in the code.

3. Model Loader: Multi-Source with Intelligent Fallback

The Loader Architecture

# api/app/core/model_loader.py

class ModelLoader:
    """Handles loading ML models from various sources."""

    def __init__(
        self,
        local_model_path: Optional[str] = None,
        gcs_bucket: Optional[str] = None,
        gcs_model_path: Optional[str] = None,
        mlflow_model_name: Optional[str] = None,
        mlflow_model_stage: Optional[str] = None,
        mlflow_tracking_uri: Optional[str] = None
    ):
        self.local_model_path = local_model_path
        self.gcs_bucket = gcs_bucket
        self.gcs_model_path = gcs_model_path
        self.mlflow_model_name = mlflow_model_name
        self.mlflow_model_stage = mlflow_model_stage
        self.mlflow_tracking_uri = mlflow_tracking_uri
        self._model: Optional[Any] = None  # Cached in memory
        self._model_version: str = "unknown"
        self._preprocessor = HousingPreprocessor()

    def load_model(self) -> Any:
        """Load model with cascade fallback strategy."""

        # Priority 1: MLflow Registry
        if self.mlflow_model_name:
            try:
                logger.info(f"Attempting MLflow load: {self.mlflow_model_name}/{self.mlflow_model_stage}")
                self._model = self.load_from_mlflow(
                    self.mlflow_model_name,
                    self.mlflow_model_stage,
                    self.mlflow_tracking_uri
                )
                return self._model
            except Exception as e:
                logger.warning(f"MLflow load failed: {str(e)}, trying GCS...")

        # Priority 2: GCS
        if self.gcs_bucket and self.gcs_model_path:
            try:
                logger.info(f"Attempting GCS load: gs://{self.gcs_bucket}/{self.gcs_model_path}")
                self._model = self.load_from_gcs(self.gcs_bucket, self.gcs_model_path)
                return self._model
            except Exception as e:
                logger.warning(f"GCS load failed: {str(e)}, trying local...")

        # Priority 3: Local filesystem
        if self.local_model_path and Path(self.local_model_path).exists():
            logger.info(f"Attempting local load: {self.local_model_path}")
            self._model = self.load_from_local(self.local_model_path)
            return self._model

        # All strategies failed
        raise RuntimeError(
            "Could not load model from any source. "
            "Check MLflow/GCS/local configuration."
        )

    def predict(self, features: pd.DataFrame) -> np.ndarray:
        """Make predictions with preprocessing."""
        if not self.is_loaded:
            raise RuntimeError("Model not loaded")

        # Apply same preprocessing as the training pipeline
        processed_features = self._preprocessor.transform(features)

        # Predict
        predictions = self._model.predict(processed_features)

        return predictions

    @property
    def is_loaded(self) -> bool:
        """Check if model is loaded."""
        return self._model is not None
