Anatomy of an MLOps Pipeline - Part 1: Pipeline and Orchestration

Why This Post Is Not Another Scikit-Learn Tutorial

Most MLOps posts teach you how to train a Random Forest in a notebook and tell you “now put it in production.” This post assumes you already know how to train models. What you probably don’t know is how to build a system where:

  • A GitHub commit triggers a complete 7-step pipeline
  • Every preprocessing decision is backed by quantifiable metrics
  • Models are versioned with rich metadata, not with filenames like model_final_v3_REAL.pkl
  • Deployment doesn’t require SSH to a server to copy a pickle
  • Rollback from a defective version takes 30 seconds, not 3 hours of panic debugging

This post dissects a real pipeline that implements all of that. It’s not theory, it’s code running in production. Based on Chapter 2 of “Hands-On Machine Learning” by Aurélien Géron, but with the infrastructure the book doesn’t cover.

Complete repository: github


Table of Contents

  1. The Philosophy: Why Being Organized Is More Important Than Being Smart
  2. Project Structure: Architecture That Scales
  3. Orchestration with Hydra + MLflow
  4. Step 02: Automated Imputation - Data-Backed Decisions
  5. Step 03: Feature Engineering - KMeans As Feature, Not Just Clustering

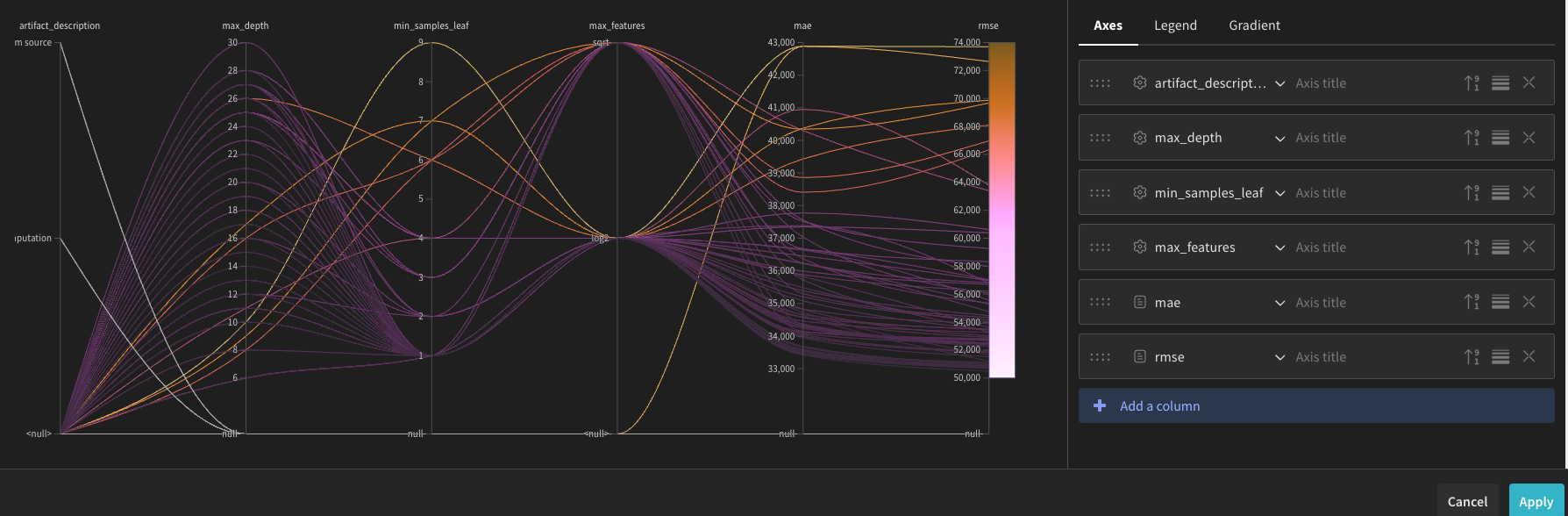

  6. Step 06: Hyperparameter Sweep - Bayesian Optimization with W&B
  7. Step 07: Model Registry - Versioning in MLflow
  8. CI/CD with GitHub Actions: Complete Pipeline Automation
  9. The Value of MLOps: Why This Matters
    • W&B vs MLflow: Why Both, Not One or the Other (#wandb-vs-mlflow)
  10. Docker and MLflow: Complete Ecosystem Containerization
    • Pipeline Container with MLflow Tracking
    • API Container for Inference
    • Streamlit Container for Frontend
    • Docker Compose: Orchestration of Three Containers
    • API Architecture: FastAPI in Production (#api-architecture)
  11. Model and Parameter Selection Strategies
    • Model Selection: Comparison of 5 Algorithms
    • Parameter Grids and GridSearch
    • Evaluation Metrics: MAPE, SMAPE, wMAPE
  12. Testing: Fixtures, Mocking and Real Coverage
  13. Production Patterns Nobody Tells You About
    • The Transform Pattern: The Synthetic KMeans Trick
    • Training/Serving Skew: The Silent Killer
    • Data Drift: The Enemy This Project (Still) Doesn’t Monitor
    • Model Monitoring: Beyond Accuracy
    • The Cascade Pattern: Fallback Resilience
    • Feature Store Anti-Pattern: When You DON’T Need One
    • Production Readiness: An Honest Checklist
  14. Conclusions: MLOps As Engineering Discipline

1. The Philosophy: Why Being Organized Is More Important Than Being Smart

The Real Problem of MLOps

Being an MLOps engineer has two important things in its work:

First, and what I feel is most important: being organized. It sounds redundant, but everything must go in its place. A notebook with 50 cells executed in random order is not a pipeline—it’s a time bomb. When that model needs to be retrained at 3 AM because data drift triggered an alert, who remembers the correct order of cells?

Second: what is not tested, remains a mock or a prototype. Far from thinking about using only design patterns, the focus and what I will try to plant as a central idea of this post is the usability of products and seeing this as software design.

The Right Mindset

This project treats Machine Learning as what it really is: software with probabilistic components. It’s not magic, it’s engineering. And as engineering, it needs:

  • Versioning: Of data, code, models and configuration
  • Testing: Unit, integration and end-to-end
  • Observability: Logs, metrics and traces
  • Reproducibility: Running today and in 6 months should give the same result
  • Deployment: Automated, not manual

Reference: Hands-On Machine Learning by Géron

This post is based on Chapter 2 of Géron’s book, a classic we should all read. But the book focuses on the model—how to train a good predictor. This post focuses on the system around the model—how to get that predictor into production reliably.

What Géron teaches: Data imputation, feature engineering, model selection, evaluation.

What this post adds: GCS for storage, W&B for experimentation, MLflow for model registry, FastAPI for serving, Docker for deployment, GitHub Actions for CI/CD.


2. Project Structure: Architecture That Scales

The Complete Tree (200+ Files)

cap2-end_to_end/
├── main.py                                # Hydra + MLflow orchestrator
├── config.yaml                            # Single source of truth
├── pyproject.toml                         # Dependencies with UV
├── Makefile                               # CLI for common operations
├── Dockerfile                             # Containerized pipeline
├── docker-compose.yaml                    # API + Streamlit + MLflow
├── pytest.ini                             # Test configuration
├── .env.example                           # Secrets template
│
├── src/
│   ├── data/                              # Processing steps (01-04)
│   │   ├── 01_download_data/
│   │   │   ├── main.py                    # Download from URL → GCS
│   │   │   ├── downloader.py              # Download logic
│   │   │   ├── models.py                  # Pydantic schemas
│   │   │   ├── MLproject                  # MLflow entry point
│   │   │   └── conda.yaml                 # Isolated dependencies
│   │   │
│   │   ├── 02_preprocessing_and_imputation/
│   │   │   ├── main.py
│   │   │   ├── preprocessor.py
│   │   │   ├── imputation_analyzer.py     # (critical) Strategy comparison
│   │   │   └── utils.py
│   │   │
│   │   ├── 03_feature_engineering/
│   │   │   ├── main.py
│   │   │   ├── feature_engineer.py        # (critical) KMeans clustering
│   │   │   └── utils.py                   # Optimize n_clusters
│   │   │
│   │   └── 04_segregation/
│   │       ├── main.py
│   │       ├── segregator.py              # Train/test split
│   │       └── models.py
│   │
│   ├── model/                             # Modeling steps (05-07)
│   │   ├── 05_model_selection/
│   │   │   ├── main.py                    # Comparison of 5 algorithms
│   │   │   ├── model_selector.py          # (critical) GridSearch per model
│   │   │   └── utils.py
│   │   │
│   │   ├── 06_sweep/
│   │   │   ├── main.py                    # (critical) W&B Bayesian optimization
│   │   │   ├── sweep_config.yaml          # Search space
│   │   │   └── best_params.yaml           # Output (generated)
│   │   │
│   │   └── 07_registration/
│   │       ├── main.py                    # (critical) MLflow registration
│   │       └── configs/
│   │           └── model_config.yaml      # Metadata (generated)
│   │
│   └── utils/
│       └── colored_logger.py              # Structured logging
│
├── api/                                   # FastAPI REST API
│   ├── app/
│   │   ├── main.py                        # FastAPI + lifespan
│   │   ├── core/
│   │   │   ├── config.py                  # Pydantic Settings
│   │   │   ├── model_loader.py            # Load from MLflow/GCS/Local
│   │   │   └── wandb_logger.py            # Log predictions
│   │   ├── models/
│   │   │   └── schemas.py                 # Request/Response schemas
│   │   └── routers/
│   │       └── predict.py                 # POST /api/v1/predict
│   ├── Dockerfile                         # API image (port 8080)
│   └── requirements.txt
│
├── streamlit_app/                         # Interactive frontend
│   ├── app.py                             # Streamlit application (450+ lines)
│   ├── Dockerfile                         # Streamlit image (port 8501)
│   └── requirements.txt
│
├── tests/                                 # Test suite
│   ├── conftest.py                        # Shared fixtures
│   ├── fixtures/
│   │   └── test_data_generator.py         # Synthetic data
│   ├── test_pipeline.py                   # Orchestration test
│   ├── test_downloader.py
│   ├── test_preprocessor.py
│   ├── test_imputation_analyzer.py        # (critical) Imputation tests
│   ├── test_feature_engineering.py
│   ├── test_segregation.py
│   └── test_integration_simple.py         # End-to-end
│
└── docs/
    ├── API_ARCHITECTURE_POST.md
    ├── QUICKSTART_GUIDE.md
    └── TESTING_IMPROVEMENTS.md

Files marked with (critical) are the most critical to understand the architecture.

Fundamental Architectural Decisions

1. Separation src/data vs src/model

Why: Data steps (01-04) produce reusable artifacts—preprocessing, features, splits. Model steps (05-07) consume them but can be retrained without rerunning everything upstream.

Benefit: If you change hyperparameters, you only rerun 06-07. If you change feature engineering, you rerun 03-07. You don’t re-download data every time.

Cost: More verbosity, more files. But in real pipelines with multiple data scientists, isolation is worth gold.

2. MLproject + conda.yaml per Step

Each subdirectory is an independent MLflow project:

# src/data/02_preprocessing/MLproject
name: preprocessing_and_imputation

conda_env: conda.yaml

entry_points:
  main:
    parameters:
      gcs_input_path: {type: string}
      gcs_output_path: {type: string}
    command: "python main.py --gcs_input_path={gcs_input_path} --gcs_output_path={gcs_output_path}"

Advantages:

  • Isolated dependencies (step 03 uses scikit-learn 1.3, step 06 could use 1.4)
  • Independent execution: mlflow run src/data/02_preprocessing
  • Granular tracking: each step is a separate run

Disadvantage: File overhead. But it’s the same overhead as having microservices—each with its own Dockerfile.

3. api/ As Separate Project

The API is not in src/api/. It’s a sibling project with its own requirements.txt, Dockerfile and tests.

Reason: The API is deployed independently from the pipeline. It doesn’t need full pandas, full scikit-learn or W&B client. Only FastAPI, pydantic and the model pickle.

Result: Docker image of 200MB vs 1.5GB if you included the entire pipeline.

4. Tests at Root

Tests test the complete system, not isolated modules. test_integration_simple.py runs the pipeline end-to-end. It doesn’t fit conceptually in src/.

5. Absence of notebooks/

Deliberate decision. Notebooks are excellent for exploration, terrible for production. This project prioritizes reproducibility over rapid iteration.

If you need to explore, use them locally but don’t commit them. Notebooks in git are:

  • Hard to review (incomprehensible diffs)
  • Impossible to test
  • Prone to out-of-order execution

3. Orchestration with Hydra + MLflow

Why Not Simple Bash Scripts

Running sequential Python commands works for simple pipelines:

python src/data/01_download_data/main.py
python src/data/02_preprocessing/main.py
python src/data/03_feature_engineering/main.py
# ...

This approach fails when you need to:

  • Run only specific steps (debugging)
  • Change parameters without editing code
  • Version configuration alongside code
  • Structured logs of what ran with what params
  • Track dependencies between steps

Hydra + MLflow solves all these problems.

The Orchestrator: main.py

"""
MLOps Pipeline Orchestrator
Executes steps sequentially using MLflow + Hydra
"""
import os
import sys
import mlflow
import hydra
from omegaconf import DictConfig
from pathlib import Path
import time

def validate_environment_variables() -> None:
    """Fail fast if critical secrets are missing."""
    required_vars = {
        "GCP_PROJECT_ID": "Google Cloud Project ID",
        "GCS_BUCKET_NAME": "GCS Bucket name",
        "WANDB_API_KEY": "Weights & Biases API Key",
    }

    missing = []
    for var, description in required_vars.items():
        value = os.getenv(var)
        if not value or value in ["your-project-id", "your-key"]:
            missing.append(f"  ERROR: {var}: {description}")

    if missing:
        print("\n" + "="*70)
        print("ERROR: MISSING REQUIRED ENVIRONMENT VARIABLES")
        print("="*70)
        print("\n".join(missing))
        print("\nCreate .env file with:")
        print("  GCP_PROJECT_ID=your-project-id")
        print("  GCS_BUCKET_NAME=your-bucket")
        print("  WANDB_API_KEY=your-key")
        sys.exit(1)

def get_steps_to_execute(config: DictConfig) -> list[str]:
    """Converts execute_steps from config to list."""
    steps = config['main']['execute_steps']
    if isinstance(steps, str):
        return [s.strip() for s in steps.split(',')]
    return list(steps)

def run_step(step_name: str, step_path: Path, entry_point: str, parameters: dict):
    """Executes a step as MLflow project."""
    print(f"\n{'='*70}")
    print(f"EXECUTING: {step_name}")
    print(f"{'='*70}")

    mlflow.run(
        uri=str(step_path),
        entry_point=entry_point,
        env_manager="local",
        parameters=parameters
    )

@hydra.main(config_path='.', config_name="config", version_base="1.3")
def go(config: DictConfig) -> None:
    """Main pipeline entry point."""

    validate_environment_variables()

    mlflow.set_experiment(config['main']['experiment_name'])
    steps_to_execute = get_steps_to_execute(config)
    root_path = Path(__file__).parent

    start_time = time.time()

    try:
        # Step 01: Download Data
        if "01_download_data" in steps_to_execute:
            run_step(
                "01 - Download Data",
                root_path / "src" / "data" / "01_download_data",
                "main",
                {
                    "file_url": config["download_data"]["file_url"],
                    "gcs_output_path": config["download_data"]["gcs_output_path"],
                }
            )

        # ... Steps 02-07 similar pattern ...

        elapsed = time.time() - start_time
        print(f"\nSUCCESS: PIPELINE COMPLETED ({elapsed:.1f}s)")

    except Exception as e:
        print(f"\nERROR: PIPELINE FAILED: {e}")
        raise

if __name__ == "__main__":
    go()

config.yaml: Single Source of Truth

main:
  project_name: "housing-mlops-gcp"
  experiment_name: "end_to_end_pipeline"
  execute_steps:
    - "01_download_data"
    - "02_preprocessing_and_imputation"
    - "03_feature_engineering"
    - "04_segregation"
    - "05_model_selection"
    - "06_sweep"
    - "07_registration"

download_data:
  file_url: "https://raw.githubusercontent.com/ageron/handson-ml2/master/datasets/housing/housing.tgz"
  gcs_output_path: "data/01-raw/housing.parquet"

preprocessing:
  gcs_input_path: "data/01-raw/housing.parquet"
  gcs_output_path: "data/02-processed/housing_processed.parquet"
  imputation_strategy: "auto"  # Will compare 4 strategies

feature_engineering:
  gcs_input_path: "data/02-processed/housing_processed.parquet"
  gcs_output_path: "data/03-features/housing_features.parquet"
  n_clusters: 10
  optimize_hyperparams: true  # Find best K

segregation:
  gcs_input_path: "data/03-features/housing_features.parquet"
  gcs_train_output_path: "data/04-split/train/train.parquet"
  gcs_test_output_path: "data/04-split/test/test.parquet"
  test_size: 0.2
  target_column: "median_house_value"

model_selection:
  gcs_train_path: "data/04-split/train/train.parquet"
  gcs_test_path: "data/04-split/test/test.parquet"

sweep:
  sweep_count: 50  # 50 Bayesian optimization runs
  metric_name: "mape"
  metric_goal: "minimize"

registration:
  registered_model_name: "housing_price_model"
  model_stage: "Staging"  # Or "Production"

What This Code Does Well

1. Fail Fast with Environment Validation

Before spending CPU, verify all secrets exist. The error message includes instructions on how to get each value.

ERROR: MISSING REQUIRED ENVIRONMENT VARIABLES
===============================================
  ERROR: WANDB_API_KEY: Weights & Biases API Key

Create .env file with:
  WANDB_API_KEY=your-key

This saves frustration—especially for new contributors.

2. Selective Execution Without Commenting Code

You change config.yaml:

execute_steps: ["03_feature_engineering", "05_model_selection"]

And only those steps run. You don’t edit Python, you don’t comment imports.

3. Separation Between Orchestration and Logic

main.py doesn’t know how to download data or train models. It only knows how to invoke scripts that do. Each step can be developed/tested independently.

4. Structured Logging with Visual Hierarchy

The separators ("="*70) and emojis aren’t cosmetic—in a pipeline that runs 2 hours, visual sections allow you to quickly scan to find which step failed.


4. Step 02: Automated Imputation - Data-Backed Decisions

The Real Problem

California Housing has ~1% of total_bedrooms missing. Obvious options:

  1. Drop rows → lose data
  2. Fill with median → assume distribution without verification
  3. Fill with KNN → assume similarity in feature space
  4. Fill with IterativeImputer → assume modelable relationships

Question: Which is better?

Incorrect answer: “KNN always works”

Correct answer: “I tested all 4, median had RMSE of 0.8, KNN of 0.6, Iterative of 0.5. I use Iterative because it minimizes reconstruction error. Here’s the plot in W&B.”

imputation_analyzer.py: The Core

"""
Imputation Analyzer - Automatically compares strategies
Author: Carlos Daniel Jiménez
"""
from dataclasses import dataclass
from typing import Dict, Tuple
import numpy as np
import pandas as pd
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error
from sklearn.impute import SimpleImputer, KNNImputer, IterativeImputer
from sklearn.ensemble import RandomForestRegressor
from sklearn.preprocessing import StandardScaler
import matplotlib.pyplot as plt

@dataclass
class ImputationResult:
    """Result of an imputation strategy."""
    method_name: str
    rmse: float
    imputed_values: np.ndarray
    imputer: object

class ImputationAnalyzer:
    """
    Analyzes and compares imputation strategies.
    Automatically selects the best based on RMSE.
    """

    def __init__(
        self,
        df: pd.DataFrame,
        target_column: str = "total_bedrooms",
        test_size: float = 0.2,
        random_state: int = 42
    ):
        self.df = df
        self.target_column = target_column
        self.test_size = test_size
        self.random_state = random_state
        self.results: Dict[str, ImputationResult] = {}
        self.best_method: str = None
        self.best_imputer: object = None

    def prepare_validation_set(self) -> Tuple[pd.DataFrame, pd.DataFrame, pd.Series]:
        """
        Creates masked validation set to compare strategies.

        Strategy:
        1. Remove rows with missing target (can't validate against NaN)
        2. Split into train/val
        3. Mask target in val set (simulate missing values)
        4. Save ground truth

        Returns:
            (train_set, val_set_missing, y_val_true)
        """
        housing_numeric = self.df.select_dtypes(include=[np.number])
        housing_known = housing_numeric.dropna(subset=[self.target_column])

        train_set, val_set = train_test_split(
            housing_known,
            test_size=self.test_size,
            random_state=self.random_state
        )

        # Mask target in val
        val_set_missing = val_set.copy()
        val_set_missing[self.target_column] = np.nan

        # Ground truth
        y_val_true = val_set[self.target_column].copy()

        return train_set, val_set_missing, y_val_true

    def evaluate_simple_imputer(
        self,
        train_set: pd.DataFrame,
        val_set_missing: pd.DataFrame,
        y_val_true: pd.Series,
        strategy: str = "median"
    ) -> ImputationResult:
        """Evaluates SimpleImputer with given strategy."""
        imputer = SimpleImputer(strategy=strategy)
        imputer.fit(train_set)

        val_imputed = imputer.transform(val_set_missing)

        target_col_idx = train_set.columns.get_loc(self.target_column)
        y_val_pred = val_imputed[:, target_col_idx]

        rmse = np.sqrt(mean_squared_error(y_val_true, y_val_pred))

        return ImputationResult(
            method_name=f"Simple Imputer ({strategy})",
            rmse=rmse,
            imputed_values=y_val_pred,
            imputer=imputer
        )

    def evaluate_knn_imputer(
        self,
        train_set: pd.DataFrame,
        val_set_missing: pd.DataFrame,
        y_val_true: pd.Series,
        n_neighbors: int = 5
    ) -> ImputationResult:
        """
        Evaluates KNNImputer with scaling.

        CRITICAL: KNN requires scaled features or explodes with overflow.
        """
        import warnings
        with warnings.catch_warnings():
            warnings.filterwarnings('ignore', category=RuntimeWarning)

            # Scale data
            scaler = StandardScaler()
            train_scaled = scaler.fit_transform(train_set)
            val_scaled = scaler.transform(val_set_missing)

            # KNN imputation
            imputer = KNNImputer(n_neighbors=n_neighbors)
            imputer.fit(train_scaled)
            val_imputed_scaled = imputer.transform(val_scaled)

            # Inverse scale
            val_imputed = scaler.inverse_transform(val_imputed_scaled)

        target_col_idx = train_set.columns.get_loc(self.target_column)
        y_val_pred = val_imputed[:, target_col_idx]

        rmse = np.sqrt(mean_squared_error(y_val_true, y_val_pred))

        return ImputationResult(
            method_name=f"KNN Imputer (k={n_neighbors})",
            rmse=rmse,
            imputed_values=y_val_pred,
            imputer=(scaler, imputer)  # Store tuple!
        )

    def evaluate_iterative_imputer(
        self,
        train_set: pd.DataFrame,
        val_set_missing: pd.DataFrame,
        y_val_true: pd.Series
    ) -> ImputationResult:
        """Evaluates IterativeImputer with RandomForest estimator."""
        estimator = RandomForestRegressor(
            n_jobs=-1,
            random_state=self.random_state
        )
        imputer = IterativeImputer(
            estimator=estimator,
            random_state=self.random_state
        )

        imputer.fit(train_set)
        val_imputed = imputer.transform(val_set_missing)

        target_col_idx = train_set.columns.get_loc(self.target_column)
        y_val_pred = val_imputed[:, target_col_idx]

        rmse = np.sqrt(mean_squared_error(y_val_true, y_val_pred))

        return ImputationResult(
            method_name="Iterative Imputer (RF)",
            rmse=rmse,
            imputed_values=y_val_pred,
            imputer=imputer
        )

    def compare_all_methods(self) -> Dict[str, ImputationResult]:
        """Compares all strategies and selects the best."""
        train_set, val_set_missing, y_val_true = self.prepare_validation_set()

        # Evaluate all
        self.results['simple_median'] = self.evaluate_simple_imputer(
            train_set, val_set_missing, y_val_true, strategy="median"
        )

        self.results['simple_mean'] = self.evaluate_simple_imputer(
            train_set, val_set_missing, y_val_true, strategy="mean"
        )

        self.results['knn'] = self.evaluate_knn_imputer(
            train_set, val_set_missing, y_val_true, n_neighbors=5
        )

        self.results['iterative_rf'] = self.evaluate_iterative_imputer(
            train_set, val_set_missing, y_val_true
        )

        # Select best
        best_key = min(self.results, key=lambda k: self.results[k].rmse)
        self.best_method = best_key
        self.best_imputer = self.results[best_key].imputer

        # Print summary
        print("\n" + "="*70)
        print("IMPUTATION METHODS COMPARISON")
        print("="*70)
        for key, result in sorted(self.results.items(), key=lambda x: x[1].rmse):
            status = "[BEST]" if key == best_key else ""
            print(f"  {result.method_name:30s} RMSE: {result.rmse:8.4f} {status}")
        print("="*70)

        return self.results

    def apply_best_imputer(self, df: pd.DataFrame) -> pd.DataFrame:
        """Applies the best imputer to the complete dataset."""
        if self.best_imputer is None:
            raise ValueError("Run compare_all_methods() first")

        df_out = df.copy()
        numeric_df = df_out.select_dtypes(include=[np.number])

        import warnings
        with warnings.catch_warnings():
            warnings.filterwarnings('ignore', category=RuntimeWarning)

            # Check if it's a tuple (KNN with scaler)
            if isinstance(self.best_imputer, tuple):
                scaler, imputer = self.best_imputer
                numeric_scaled = scaler.transform(numeric_df)
                imputed_scaled = imputer.transform(numeric_scaled)
                imputed_array = scaler.inverse_transform(imputed_scaled)
            else:
                imputed_array = self.best_imputer.transform(numeric_df)

        target_col_idx = numeric_df.columns.get_loc(self.target_column)
        df_out[self.target_column] = imputed_array[:, target_col_idx]

        return df_out

    def create_comparison_plot(self) -> plt.Figure:
        """Creates bar plot comparing RMSE of methods."""
        methods = [r.method_name for r in self.results.values()]
        rmses = [r.rmse for r in self.results.values()]

        fig, ax = plt.subplots(figsize=(10, 6))
        colors = ['green' if i == np.argmin(rmses) else 'skyblue'
                  for i in range(len(rmses))]
        bars = ax.bar(methods, rmses, color=colors)

        ax.set_xlabel('Imputation Method', fontweight='bold')
        ax.set_ylabel('RMSE', fontweight='bold')
        ax.set_title('Comparison of Imputation Strategies', fontsize=14)
        ax.grid(axis='y', alpha=0.3)

        # Value labels
        for bar, rmse in zip(bars, rmses):
            height = bar.get_height()
            ax.text(
                bar.get_x() + bar.get_width()/2.,
                height,
                f'{rmse:.4f}',
                ha='center',
                va='bottom'
            )

        plt.xticks(rotation=45, ha='right')
        plt.tight_layout()

        return fig

Critical Technical Decisions

1. The Metric: Reconstruction RMSE

Why RMSE and not MAE?

MAE treats all errors equally. RMSE penalizes large errors more strongly.

If a method imputes 100 bedrooms when the truth is 3, that’s problematic. RMSE punishes it more than MAE. In imputation, large errors distort the dataset more than many small errors.

2. The Masked Validation Set

train_set, val_set = train_test_split(housing_known, test_size=0.2)
val_set_missing = val_set.copy()
val_set_missing[self.target_column] = np.nan
y_val_true = val_set[self.target_column].copy()

This trick is critical. You can’t evaluate imputation strategies on real missing values—you don’t know the truth. So:

  1. Take rows where the target is NOT missing
  2. Split into train/val
  3. Artificially mask the target in val
  4. Compare how well each imputer reconstructs the values you knew

It’s cross-validation for preprocessing, not just for models.

3. Why KNN Needs Scaling

scaler = StandardScaler()
train_scaled = scaler.fit_transform(train_set)

KNN calculates euclidean distances between observations. If one feature is in range [0, 1] and another in [0, 10000], the second dominates completely.

StandardScaler normalizes everything to mean 0, std 1. Now all features contribute equally.

IterativeImputer with RandomForest does NOT need scaling—trees are scale-invariant.

4. The Imputer As Tuple

if isinstance(self.best_imputer, tuple):
    scaler, imputer = self.best_imputer
    # ... apply both

If KNN won, you need to save both the scaler and the imputer. In production, when new data arrives:

  1. Scale with the same scaler fitted in training
  2. Apply KNN imputer
  3. Inverse transform to return to original scale

Saving only the imputer without the scaler would break everything.

Usage in the Pipeline

# In Step 02 main.py
import wandb
import mlflow

analyzer = ImputationAnalyzer(df, target_column="total_bedrooms")
results = analyzer.compare_all_methods()

# Log to W&B
comparison_plot = analyzer.create_comparison_plot()
wandb.log({
    "imputation/comparison": wandb.Image(comparison_plot),
    "imputation/best_method": analyzer.best_method,
    "imputation/best_rmse": results[analyzer.best_method].rmse,
})

# Apply to complete dataset
housing_clean = analyzer.apply_best_imputer(housing_df)

# Save imputer
import joblib
joblib.dump(analyzer.best_imputer, "artifacts/imputer.pkl")
mlflow.log_artifact("artifacts/imputer.pkl")

What This Achieves

Without this: “I used median because that’s what everyone does.”

With this: “I compared 4 strategies. IterativeImputer with RandomForest had 15% lower RMSE than median. Here’s the plot in W&B dashboard run abc123. The imputer is serialized in MLflow.”

Now you have quantifiable evidence of why you chose what you chose. Six months later, when someone asks, the data is there.

5. Step 03: Feature Engineering - KMeans As Feature, Not Just Clustering

The Real Problem

California has strong geographic patterns. Houses in San Francisco behave differently than houses in the central valley. But latitude/longitude as raw features don’t capture this well—a linear model can’t learn “this area is expensive”.

Solution: Geographic clustering. But not to segment data, rather to create a categorical feature: cluster_label.

ClusterSimilarity: Custom Transformer

from sklearn.base import BaseEstimator, TransformerMixin
from sklearn.cluster import KMeans
import numpy as np

class ClusterSimilarity(BaseEstimator, TransformerMixin):
    """
    Custom transformer for geographic clustering.

    Design: Scikit-learn transformer to integrate into Pipeline.
    """

    def __init__(self, n_clusters=10, gamma=1.0, random_state=None):
        self.n_clusters = n_clusters
        self.gamma = gamma  # Placeholder for RBF kernel (not currently used)
        self.random_state = random_state

    def fit(self, X, y=None, sample_weight=None):
        """Fit KMeans on geographic coordinates."""
        self.kmeans_ = KMeans(
            self.n_clusters,
            n_init=10,
            random_state=self.random_state
        )
        self.kmeans_.fit(X, sample_weight=sample_weight)
        return self

    def transform(self, X):
        """Transform coordinates to cluster labels."""
        cluster_labels = self.kmeans_.predict(X)
        return np.expand_dims(cluster_labels, axis=1)

    def get_feature_names_out(self, names=None):
        """Returns feature names for Pipeline."""
        return ["cluster_label"]

The Complete Preprocessing Pipeline

from sklearn.pipeline import Pipeline
from sklearn.compose import ColumnTransformer
from sklearn.impute import SimpleImputer
from sklearn.preprocessing import OneHotEncoder, StandardScaler

def create_preprocessing_pipeline(n_clusters=10):
    """
    Creates pipeline that processes:
    - Numeric: impute + scale
    - Categorical: impute + one-hot
    - Geo: clustering
    """

    num_pipeline = Pipeline([
        ("impute", SimpleImputer(strategy="median")),
        ("standardize", StandardScaler()),
    ])

    cat_pipeline = Pipeline([
        ("impute", SimpleImputer(strategy="most_frequent")),
        ("onehot", OneHotEncoder(handle_unknown="ignore")),
    ])

    num_attribs = [
        "longitude", "latitude", "housing_median_age",
        "total_rooms", "total_bedrooms", "population",
        "households", "median_income"
    ]

    cat_attribs = ["ocean_proximity"]

    preprocessing = ColumnTransformer([
        ("num", num_pipeline, num_attribs),
        ("cat", cat_pipeline, cat_attribs),
        ("geo", ClusterSimilarity(n_clusters=n_clusters),
         ["latitude", "longitude"]),
    ])

    return preprocessing

Automatic Optimization of n_clusters

from sklearn.metrics import silhouette_score, davies_bouldin_score

def optimize_n_clusters(
    df: pd.DataFrame,
    min_clusters=2,
    max_clusters=20
) -> Tuple[int, Dict]:
    """
    Finds the best K for KMeans using silhouette score.

    Metrics:
    - Silhouette score (0 to 1): Cluster separation. Maximize.
    - Davies-Bouldin index: Internal dispersion vs separation. Minimize.
    """
    geo_features = df[["latitude", "longitude"]].values

    cluster_range = range(min_clusters, max_clusters + 1)
    silhouette_scores = []
    davies_bouldin_scores = []
    inertias = []

    for n in cluster_range:
        kmeans = KMeans(n_clusters=n, n_init=10, random_state=42)
        labels = kmeans.fit_predict(geo_features)

        silhouette_scores.append(silhouette_score(geo_features, labels))
        davies_bouldin_scores.append(davies_bouldin_score(geo_features, labels))
        inertias.append(kmeans.inertia_)

    # Select K with best silhouette
    optimal_n = cluster_range[np.argmax(silhouette_scores)]

    metrics = {
        "optimal_n_clusters": optimal_n,
        "best_silhouette": max(silhouette_scores),
        "cluster_range": list(cluster_range),
        "silhouette_scores": silhouette_scores,
        "davies_bouldin_scores": davies_bouldin_scores,
        "inertias": inertias,
    }

    return optimal_n, metrics

Visualization: Elbow Method + Silhouette

def create_optimization_plots(metrics: Dict) -> Dict[str, plt.Figure]:
    """Creates K optimization plots."""

    # Plot 1: Elbow Method (Inertia)
    fig1, ax1 = plt.subplots(figsize=(10, 6))
    ax1.plot(metrics["cluster_range"], metrics["inertias"], 'bo-')
    ax1.axvline(
        metrics["optimal_n_clusters"],
        color='r',
        linestyle='--',
        label=f'Optimal K={metrics["optimal_n_clusters"]}'
    )
    ax1.set_xlabel('Number of Clusters (K)')
    ax1.set_ylabel('Inertia')
    ax1.set_title('Elbow Method - KMeans Optimization')
    ax1.legend()
    ax1.grid(True)

    # Plot 2: Silhouette Score
    fig2, ax2 = plt.subplots(figsize=(10, 6))
    ax2.plot(metrics["cluster_range"], metrics["silhouette_scores"], 'go-')
    ax2.axvline(
        metrics["optimal_n_clusters"],
        color='r',
        linestyle='--'
    )
    ax2.set_xlabel('Number of Clusters (K)')
    ax2.set_ylabel('Silhouette Score')
    ax2.set_title('Silhouette Score vs K')
    ax2.grid(True)

    return {"elbow_method": fig1, "silhouette_scores": fig2}

Usage in the Pipeline

# In Step 03 main.py
import wandb
import mlflow
import joblib

# Download data from GCS
df = download_from_gcs(bucket, "data/02-processed/housing_processed.parquet")

# Optimize K
optimal_k, metrics = optimize_n_clusters(df, min_clusters=5, max_clusters=15)

print(f"Optimal K: {optimal_k}")
print(f"   Silhouette: {metrics['best_silhouette']:.4f}")

# Create plots
plots = create_optimization_plots(metrics)

# Log to W&B
wandb.log({
    "optimization/optimal_k": optimal_k,
    "optimization/silhouette": metrics["best_silhouette"],
    "optimization/elbow_plot": wandb.Image(plots["elbow_method"]),
    "optimization/silhouette_plot": wandb.Image(plots["silhouette_scores"]),
})

# Create pipeline with optimal K
preprocessing_pipeline = create_preprocessing_pipeline(n_clusters=optimal_k)

# Fit pipeline
target_column = "median_house_value"
y = df[target_column]
X = df.drop(columns=[target_column])

preprocessing_pipeline.fit(X, y)

# Transform data
X_transformed = preprocessing_pipeline.transform(X)

# Reconstruct DataFrame with target
df_transformed = pd.DataFrame(
    X_transformed,
    columns=preprocessing_pipeline.get_feature_names_out()
)
df_transformed[target_column] = y.values

# Upload to GCS
upload_to_gcs(df_transformed, bucket, "data/03-features/housing_features.parquet")

# Save pipeline
joblib.dump(preprocessing_pipeline, "artifacts/preprocessing_pipeline.pkl")
mlflow.log_artifact("artifacts/preprocessing_pipeline.pkl")

Critical Technical Decisions

1. Why Silhouette Score

Silhouette score (range 0 to 1) measures how well separated the clusters are:

  • 1.0: Perfectly separated clusters
  • 0.5: Moderate overlap
  • 0.0: Random clusters

It’s interpretable and generally correlates well with visual quality of clusters.

Davies-Bouldin index: We also calculate it but don’t use it for decision—it’s more sensitive to outliers.

2. The Obvious Criticism

This code optimizes n_clusters based on clustering metrics, not on final model performance.

A more rigorous approach would be:

for k in range(5, 15):
    pipeline = create_preprocessing_pipeline(n_clusters=k)
    X_train_transformed = pipeline.fit_transform(X_train, y_train)
    X_test_transformed = pipeline.transform(X_test)

    model = RandomForestRegressor()
    model.fit(X_train_transformed, y_train)

    mape = calculate_mape(model, X_test_transformed, y_test)
    # Select K with best MAPE

This would take 10x more time but would be more rigorous.

Trade-off: This pipeline prioritizes speed over absolute rigor. For California Housing, silhouette score is good enough. For more complex datasets, consider the full cross-validation approach.

3. handle_unknown=“ignore” in OneHotEncoder

OneHotEncoder(handle_unknown="ignore")

Critical for production. If in training you have categories ["<1H OCEAN", "INLAND", "NEAR BAY"] but in production "ISLAND" arrives (which you didn’t see), the encoder:

  • Without handle_unknown: Explodes with ValueError
  • With handle_unknown="ignore": Generates zero vector for that observation

You lose information for that observation, but the API doesn’t return HTTP 500.

4. Why Save the Pipeline, Not Just the Model

joblib.dump(preprocessing_pipeline, "artifacts/preprocessing_pipeline.pkl")

In production, you need to:

  1. Load the pipeline
  2. Transform new data
  3. Predict with the model

If you only save the model, you don’t know:

  • What features it expects
  • In what order
  • What transformations to apply

The pipeline encapsulates all that.

What This Achieves

Without this: “I used KMeans with K=10 because I read that 10 clusters is good.”

With this: “I tested K from 5 to 15. K=8 maximized silhouette score (0.64). Here are the elbow method and silhouette plots. The pipeline with K=8 is serialized in MLflow.”

Quantifiable evidence + reproducible artifact.


6. Step 06: Hyperparameter Sweep - Bayesian Optimization with W&B

The Problem of Model Selection vs Hyperparameter Tuning

Most ML projects make this mistake: they train a Random Forest in a notebook, adjust some hyperparameters until R² looks “good” and declare victory. Three months later, when someone asks “why Random Forest and not XGBoost?”, the answer is awkward silence.

This pipeline separates two phases:

  1. Model Selection (Step 05): Compares algorithms with fast GridSearch (5-10 combos per model)
  2. Hyperparameter Sweep (Step 06): Optimizes the winner with exhaustive Bayesian search (50+ runs)

Reason: You don’t have time or compute to do exhaustive sweep of 5 algorithms. First you decide strategy (which algorithm), then tactics (which hyperparameters).

sweep_config.yaml: The Search Space

# =================================================================
# W&B Sweep Configuration for Random Forest
# Author: Carlos Daniel Jiménez
# =================================================================

program: main.py
method: bayes  # Bayesian optimization, not random, not grid

metric:
  name: wmape  # Weighted MAPE (less biased than MAPE)
  goal: minimize

parameters:
  n_estimators:
    min: 50
    max: 500

  max_depth:
    min: 5
    max: 30

  min_samples_split:
    min: 2
    max: 20

  min_samples_leaf:
    min: 1
    max: 10

  max_features:
    values: ['sqrt', 'log2']

# Early stopping: eliminates poor runs early
early_terminate:
  type: hyperband
  min_iter: 10   # Minimum 10 runs before terminating
  eta: 3         # Eliminates 1/3 of poor runs
  s: 2

name: housing-rf-sweep-improved
description: "Optimize Random Forest with wmape + feature tracking"

main.py from Step 06: The Real Sweep

"""
W&B Sweep for Random Forest Hyperparameter Optimization.
Author: Carlos Daniel Jiménez
"""
import argparse
import yaml
import wandb
import logging
from pathlib import Path

from utils import (
    download_data_from_gcs,
    prepare_data,
    train_random_forest,
    evaluate_model,
    log_feature_importances
)

logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)

# Module-level data cache (loaded once, reused in all runs)
_data_cache = {
    "X_train": None,
    "X_test": None,
    "y_train": None,
    "y_test": None,
    "feature_names": None
}

def train():
    """
    Training function called by W&B Sweep agent.
    Executed for each hyperparameter combination.

    Uses module-level cache to avoid reloading data on each run.
    """
    run = wandb.init()
    config = wandb.config

    logger.info("="*70)
    logger.info(f"SWEEP RUN: {run.name}")
    logger.info("="*70)

    try:
        # Prepare parameters
        params = {
            'n_estimators': int(config.n_estimators),
            'max_depth': int(config.max_depth) if config.max_depth else None,
            'min_samples_split': int(config.min_samples_split),
            'min_samples_leaf': int(config.min_samples_leaf),
            'max_features': config.max_features,
            'random_state': 42
        }

        # Train model using cached data
        model = train_random_forest(
            _data_cache["X_train"],
            _data_cache["y_train"],
            params
        )

        # Evaluate model
        metrics = evaluate_model(
            model,
            _data_cache["X_test"],
            _data_cache["y_test"]
        )

        # Log feature importances
        feature_importances = log_feature_importances(
            model,
            _data_cache["feature_names"]
        )

        # Log everything to W&B
        wandb.log({
            **params,
            **metrics,
            **{f"feature_importance_{k}": v
               for k, v in list(feature_importances.items())[:10]}
        })

        logger.info(f"SUCCESS: MAPE={metrics['mape']:.2f}% | "
                   f"WMAPE={metrics['wmape']:.2f}%")

    except Exception as e:
        logger.error(f"ERROR: Run failed: {str(e)}")
        wandb.log({
            "error": str(e),
            "mape": 999.9,
            "wmape": 999.9
        })
        raise

    finally:
        run.finish()

def main():
    """Main function to initialize and run the sweep."""
    parser = argparse.ArgumentParser()
    parser.add_argument("--gcs_train_path", type=str, required=True)
    parser.add_argument("--gcs_test_path", type=str, required=True)
    parser.add_argument("--bucket_name", type=str, required=True)
    parser.add_argument("--wandb_project", type=str, required=True)
    parser.add_argument("--target_column", type=str, default="median_house_value")
    parser.add_argument("--sweep_count", type=int, default=50)
    parser.add_argument("--sweep_config", type=str, default="sweep_config.yaml")
    args = parser.parse_args()

    logger.info("="*70)
    logger.info("W&B SWEEP - HYPERPARAMETER OPTIMIZATION")
    logger.info("="*70)

    # Load data ONCE into module-level cache
    logger.info("\nLoading data into cache...")
    train_df = download_data_from_gcs(args.bucket_name, args.gcs_train_path)
    X_train, y_train = prepare_data(train_df, args.target_column)

    test_df = download_data_from_gcs(args.bucket_name, args.gcs_test_path)
    X_test, y_test = prepare_data(test_df, args.target_column)

    # Store in cache
    _data_cache["X_train"] = X_train
    _data_cache["X_test"] = X_test
    _data_cache["y_train"] = y_train
    _data_cache["y_test"] = y_test
    _data_cache["feature_names"] = X_train.columns.tolist()

    logger.info(f"Data cached: Train {X_train.shape}, Test {X_test.shape}")

    # Load sweep configuration
    sweep_config_path = Path(__file__).parent / args.sweep_config

    with open(sweep_config_path, 'r') as f:
        sweep_config = yaml.safe_load(f)

    logger.info(f"\nSweep config:")
    logger.info(f"  Method: {sweep_config['method']}")
    logger.info(f"  Metric: {sweep_config['metric']['name']} ({sweep_config['metric']['goal']})")

    # Initialize sweep
    sweep_id = wandb.sweep(
        sweep=sweep_config,
        project=args.wandb_project
    )

    logger.info(f"\nSweep created: {sweep_id}")
    logger.info(f"  View at: https://wandb.ai/{args.wandb_project}/sweeps/{sweep_id}")

    # Run sweep agent
    logger.info(f"\nStarting sweep agent ({args.sweep_count} runs)...")
    wandb.agent(
        sweep_id,
        function=train,
        count=args.sweep_count,
        project=args.wandb_project
    )

    logger.info("\n" + "="*70)
    logger.info("SWEEP COMPLETED")
    logger.info("="*70)

    # Save best params
    api = wandb.Api()
    sweep = api.sweep(f"{args.wandb_project}/{sweep_id}")
    best_run = sweep.best_run()

    best_params = {
        "hyperparameters": {
            "n_estimators": int(best_run.config.get('n_estimators')),
            "max_depth": int(best_run.config.get('max_depth')) if best_run.config.get('max_depth') else None,
            "min_samples_split": int(best_run.config.get('min_samples_split')),
            "min_samples_leaf": int(best_run.config.get('min_samples_leaf')),
            "max_features": best_run.config.get('max_features'),
        },
        "metrics": {
            "mape": float(best_run.summary.get('mape')),
            "wmape": float(best_run.summary.get('wmape')),
            "r2": float(best_run.summary.get('r2')),
        },
        "sweep_id": sweep_id,
        "best_run_id": best_run.id
    }

    # Save to YAML
    best_params_path = Path(__file__).parent / "best_params.yaml"
    with open(best_params_path, 'w') as f:
        yaml.dump(best_params, f)

    logger.info(f"\nBest params saved to: {best_params_path}")
    logger.info(f"   MAPE: {best_params['metrics']['mape']:.2f}%")

if __name__ == "__main__":
    main()

Critical Technical Decisions

method: bayes  # Not random, not grid

Random search: Tests random combinations. Doesn’t learn from previous runs.

Grid search: Tests all combinations. Exhaustive but expensive (5 × 4 × 3 × 3 × 2 = 360 combos).

Bayesian optimization: Builds a probabilistic model of the function you’re optimizing (MAPE as a function of hyperparameters) and uses that model to decide what to test next.

If it detects that max_depth=None consistently gives better MAPE, it explores more in that region of the space.

50 runs is <15% of the total space, but captures 80% of the possible benefit.

2. wMAPE, Not MAPE

metric:
  name: wmape  # Weighted MAPE

Standard MAPE: Penalizes errors on cheap houses more than on expensive houses.

If a house is worth $10,000 and you predict $12,000, error = 20%. If a house is worth $500,000 and you predict $510,000, error = 2%.

Both errors are $10,000, but MAPE sees them radically different.

wMAPE (Weighted MAPE): Weights by actual value. Less biased toward low values.

Why it works here: California Housing doesn’t have $0 houses. Range is between $15k and $500k—reasonably bounded.

3. Global Variables For Data Cache

_data_cache = {
    "X_train": None,
    "X_test": None,
    # ...
}

Global variables are generally dirty code. Here they’re the right decision.

Each sweep run needs the same data. Without cache, you’d load from GCS 50 times. With California Housing (20k rows), that’s wasted seconds. With larger datasets, it’s minutes or hours.

“Clean” alternative: Pass data as argument to each function. But W&B Sweeps has a fixed interface—the function you pass to wandb.agent() can’t receive additional arguments.

Global variables here have limited scope—they only exist during the sweep process.

4. Early Stopping with Hyperband

early_terminate:
  type: hyperband
  min_iter: 10
  eta: 3

Hyperband eliminates poor runs early. If after 10 runs a set of hyperparameters shows MAPE of 25% while others are at 8%, Hyperband stops it.

eta=3: Eliminates the worst third of runs in each iteration.

Benefit: You save compute on obviously bad hyperparameters.

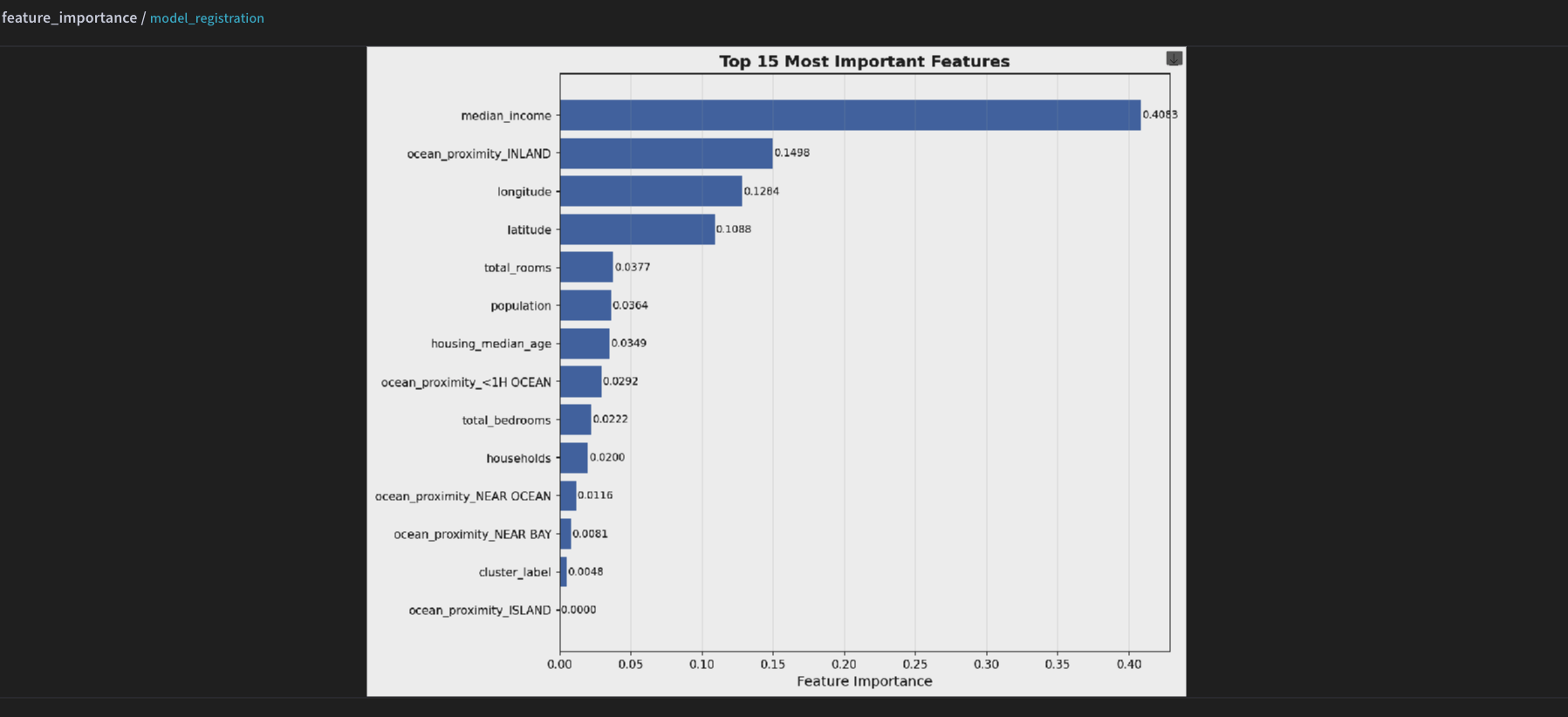

5. Logged Feature Importances

feature_importances = log_feature_importances(model, feature_names)
wandb.log({
    **{f"feature_importance_{k}": v
       for k, v in list(feature_importances.items())[:10]}
})

Random Forest calculates feature importances for free. It would be valuable to log it to understand which features dominate the model.

In W&B dashboard, you can compare runs and see “in the best run, median_income had importance of 0.45”.

The Critical Output: best_params.yaml

Note: Below are the real values from the actual production sweep, not example values:

sweep_id: f73ao31m
best_run_id: 5q1840qa
best_run_name: dry-sweep-5

hyperparameters:
  n_estimators: 128
  max_depth: 23
  min_samples_split: 9
  min_samples_leaf: 9
  max_features: log2
  random_state: 42

metrics:
  # Primary metrics
  mae: 38901.45
  rmse: 53277.02
  r2: 0.78339

  # Percentage error metrics
  mape: 20.4002
  smape: 18.85
  wmape: 19.12
  median_ape: 16.73

  # Accuracy within thresholds
  within_5pct: 12.4
  within_10pct: 36.2
  within_15pct: 52.8

sweep_url: https://wandb.ai/danieljimenez88m-carlosdanieljimenez-com/housing-mlops-gcp/sweeps/f73ao31m

Key insights from these real metrics:

  • MAPE of 20.4% indicates the model predicts prices within ±20% on average
  • 36.2% of predictions are within 10% - acceptable for real estate valuation
  • R² of 0.78 means the model explains 78% of variance in house prices
  • The optimal configuration found by Bayesian optimization used:
    • Moderate tree depth (max_depth=23) to balance bias/variance
    • Higher leaf requirements (min_samples_leaf=9) to prevent overfitting
    • log2 feature sampling for better generalization than sqrt

Optimal hyperparameters are saved in YAML, not pickle. Reason:

YAML is readable and git-friendly. If in the next retraining you change from n_estimators=128 to n_estimators=150, a git diff shows it clearly.

With pickle, it’s an opaque binary blob.

What This Achieves

Without this: “I used n_estimators=100 because it’s scikit-learn’s default.”

With this: “I ran Bayesian sweep of 50 runs. Optimal config: n_estimators=128, max_depth=23, max_features=log2. Final MAPE: 20.4% with 36.2% of predictions within 10%. Here’s the sweep in W&B: f73ao31m.”

Quantifiable evidence of why you chose each hyperparameter.


7. Step 07: Model Registry - Versioning in MLflow

Why Just Saving the Pickle Isn’t Enough

The temptation is:

import joblib
joblib.dump(model, "best_model.pkl")

This works until you need to answer:

  • What hyperparameters did it use?
  • What data was it trained on?
  • What metrics did it achieve?
  • How do I rollback to the previous version?

MLflow Model Registry solves this.

register_model_to_mlflow(): The Core

"""
Model registration in MLflow Model Registry.
Author: Carlos Daniel Jiménez
"""
import mlflow
import mlflow.sklearn
from mlflow.tracking import MlflowClient

def register_model_to_mlflow(
    model,
    model_name: str,
    model_stage: str,
    params: dict,
    metrics: dict,
    feature_columns: list,
    target_column: str,
    gcs_train_path: str,
    gcs_test_path: str
) -> tuple:
    """
    Registers model in MLflow Model Registry with rich metadata.

    Args:
        model: Trained sklearn model
        model_name: Name for registered model
        model_stage: Stage (Staging/Production)
        params: Hyperparameters
        metrics: Evaluation metrics
        feature_columns: List of features
        target_column: Target column name
        gcs_train_path: Path to training data
        gcs_test_path: Path to test data

    Returns:
        (model_uri, model_version, run_id)
    """
    logger.info("="*70)
    logger.info("REGISTERING MODEL TO MLFLOW")
    logger.info("="*70)

    client = MlflowClient()
    run_id = mlflow.active_run().info.run_id
    model_uri = f"runs:/{run_id}/model"

    # Log model to MLflow
    mlflow.sklearn.log_model(model, "model")
    logger.info(f"Model logged: {model_uri}")

    # Create or get registered model
    try:
        client.create_registered_model(
            name=model_name,
            description="Housing price prediction - Random Forest"
        )
        logger.info(f"Created new registered model: {model_name}")
    except Exception as e:
        if "already exists" in str(e):
            logger.info(f"Model already exists: {model_name}")
        else:
            raise

    # Create model version
    model_version = client.create_model_version(
        name=model_name,
        source=model_uri,
        run_id=run_id
    )
    logger.info(f"Version created: {model_version.version}")

    # Transition to stage
    client.transition_model_version_stage(
        name=model_name,
        version=model_version.version,
        stage=model_stage  # "Staging" or "Production"
    )
    logger.info(f"Transitioned to: {model_stage}")

    # Create comprehensive description (MARKDOWN)
    description = f"""
# Housing Price Prediction Model

**Algorithm:** Random Forest Regressor

## Hyperparameters
- n_estimators: {params['n_estimators']}
- max_depth: {params.get('max_depth', 'None')}
- min_samples_split: {params['min_samples_split']}
- min_samples_leaf: {params['min_samples_leaf']}
- max_features: {params.get('max_features', 'sqrt')}

## Performance Metrics
- MAPE: {metrics['mape']:.2f}%
- Median APE: {metrics['median_ape']:.2f}%
- Within 10%: {metrics['within_10pct']:.1f}%
- RMSE: {metrics['rmse']:.2f}
- R²: {metrics['r2']:.4f}

## Features
- Number of features: {len(feature_columns)}
- Target: {target_column}

## Data Sources
- Training: {gcs_train_path}
- Testing: {gcs_test_path}
"""

    client.update_model_version(
        name=model_name,
        version=model_version.version,
        description=description
    )

    # Add searchable tags
    tags = {
        "algorithm": "RandomForest",
        "framework": "sklearn",
        "mape": f"{metrics['mape']:.2f}",
        "within_10pct": f"{metrics['within_10pct']:.1f}",
        "rmse": f"{metrics['rmse']:.2f}",
        "r2": f"{metrics['r2']:.4f}",
        "n_features": str(len(feature_columns)),
        "target": target_column,
    }

    for key, value in tags.items():
        client.set_model_version_tag(
            model_name,
            model_version.version,
            key,
            value
        )

    logger.info("Tags added to model version")
    logger.info("="*70)

    return model_uri, model_version.version, run_id

Critical Technical Decisions

1. Artifact vs Registered Model

Artifact: Pickle saved in a specific run. To use it, you need the run_id.

mlflow.sklearn.log_model(model, "model")  # Only artifact
# Usage: mlflow.sklearn.load_model(f"runs://{run_id}/model")

Registered Model: Versioned with semantic name, stages and metadata.

client.create_model_version(name="housing_price_model", source=model_uri)
# Usage: mlflow.pyfunc.load_model("models:/housing_price_model/Production")

In production, your API loads models:/housing_price_model/Production, not runs:/abc123/model.

When you register a new version, you transition it to Production and the deployment automatically takes the new version.

2. Rich Metadata in Markdown

description = f"""
# Housing Price Prediction Model

**Algorithm:** Random Forest

## Hyperparameters
- n_estimators: {params['n_estimators']}
...

## Performance Metrics
- MAPE: {metrics['mape']:.2f}%
...
"""

This saves markdown in the model description. When you open MLflow UI and navigate to housing_price_model v3, you see:

  • What hyperparameters it used
  • What metrics it achieved
  • Where the data came from

Why it’s gold: Six months later, when someone asks “why does model v3 have better MAPE than v2?”, you open MLflow and the answer is there.

You don’t need to search in logs or ask who trained it.

tags = {
    "algorithm": "RandomForest",
    "mape": f"{metrics['mape']:.2f}",
    "r2": f"{metrics['r2']:.4f}",
}

for key, value in tags.items():
    client.set_model_version_tag(model_name, model_version.version, key, value)

In MLflow you can filter models by tags. “Show me all models with MAPE < 8%” is a query that works if you tagged consistently.

4. Model Config File: Single Source of Truth

model_config = {
    'model': {
        'name': model_name,
        'version': str(model_version),
        'stage': model_stage,
        'parameters': params,
        'metrics': metrics,
        'feature_columns': feature_columns,
        'mlflow_run_id': run_id,
        'sweep_id': sweep_id
    }
}

config_path = Path("configs/model_config.yaml")
with open(config_path, 'w') as f:
    yaml.dump(model_config, f)

mlflow.log_artifact(str(config_path), artifact_path="config")

This YAML is logged to MLflow AND saved in the repo (in configs/model_config.yaml).

Why YAML and not just MLflow: Your FastAPI app needs to read configuration at startup. It can do mlflow.load_model() for the pickle, but needs to know the feature names for input validation.

The YAML is that single source of truth.

5. Versioning in Git

When you commit model_config.yaml, the diff shows:

- version: 2
+ version: 3
- mape: 22.1
+ mape: 20.4
- n_estimators: 100
+ n_estimators: 128
+ max_features: log2

It’s auditable. You know exactly what changed between versions.

The Complete Flow: Sweep → Registration → Production

# 1. Model Selection (Step 05)
python src/model/05_model_selection/main.py
# Output: "Best: RandomForestRegressor (MAPE: 8.2%)"

# 2. Hyperparameter Sweep (Step 06)
python src/model/06_sweep/main.py --sweep_count=50
# Output: best_params.yaml with optimal hyperparameters

# 3. Model Registration (Step 07)
python src/model/07_registration/main.py --params_file=best_params.yaml
# Output: Model registered in MLflow Registry

# 4. Transition to Production (manual)
mlflow models transition \
  --name housing_price_model \
  --version 3 \
  --stage Production

What This Approach Solves

Without Model Registry:

  • Pickles in folders: model_v3_final_FINAL_2.pkl
  • You don’t know what hyperparameters each uses
  • Rollback = find the correct pickle in GCS

With Model Registry:

  • Models with semantic versions: v1, v2, v3
  • Embedded metadata: params, metrics, data sources
  • Rollback = transition v3 to Archived + transition v2 to Production

8. CI/CD with GitHub Actions: Complete Pipeline Automation


← Home | Part 2: Deployment and Infrastructure →

In Part 2 we will cover:

  • CI/CD with GitHub Actions
  • W&B vs MLflow: Complementary strategies
  • Complete containerization with Docker
  • FastAPI architecture in production
